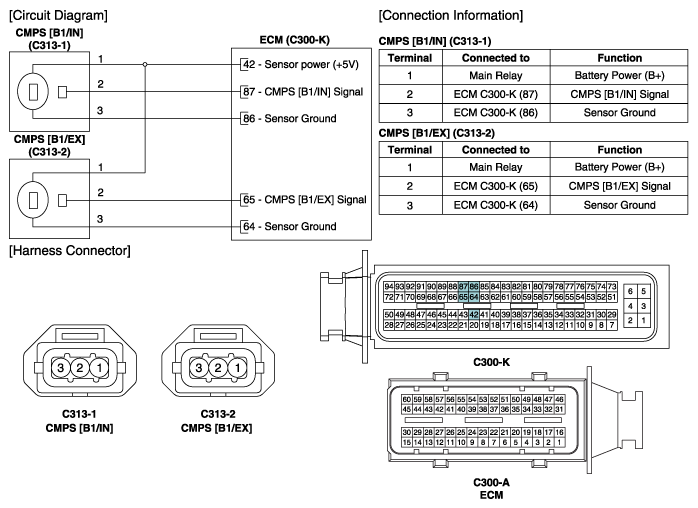

Home >> Hyundai >> 2017 >> Tucson Value, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> Camshaft Position Sensor (CMPS) >> Schematic Diagrams >> Circuit Diagram
