Home >> Hyundai >> 2017 >> Tucson Value, FWD >> Repair and Diagnosis (Single Page) >> Body & Frame >> Exterior Body Panels >> Power Lift Gate System >> Power Liftgate Module >> Components And Components Location >> Components

Components And Components Location: Components

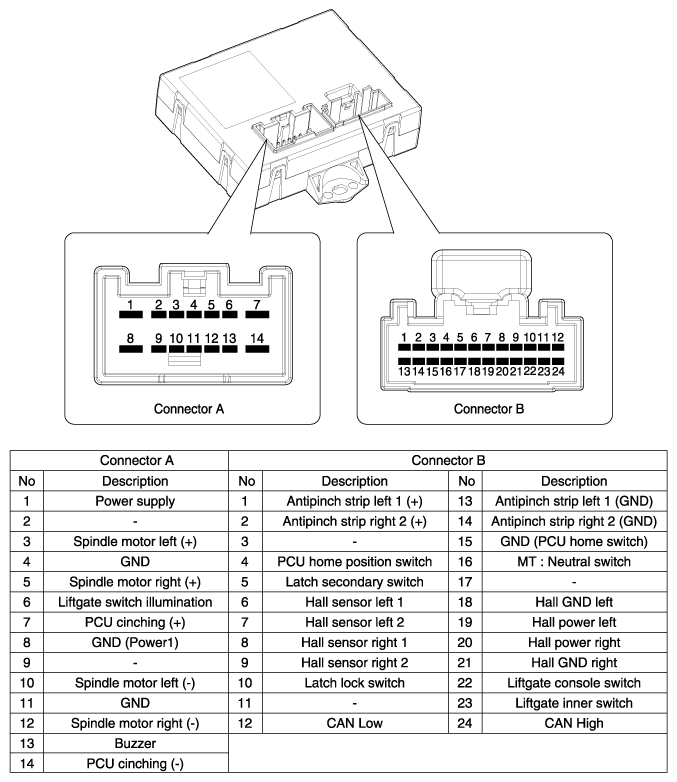

Fig 1: Power Liftgate Module Connectors And Terminal Description Chart

G12043024

Courtesy of HYUNDAI MOTOR AMERICA
