Components And Components Location: Components

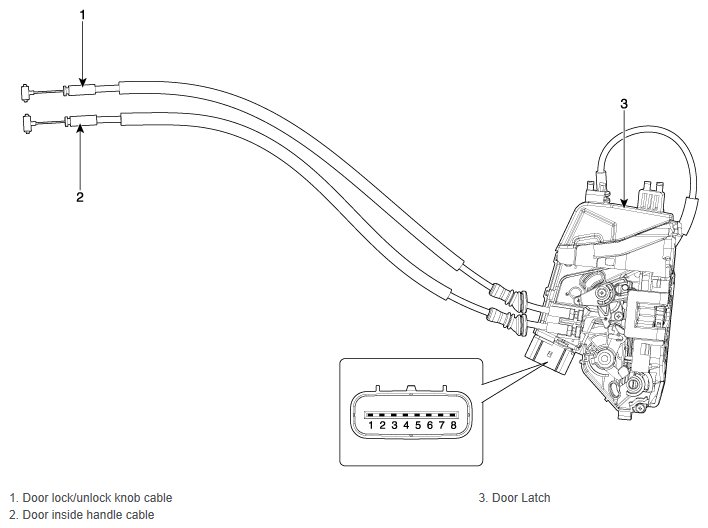

Fig 1: Power Door Lock Module Components

G12042920

Courtesy of HYUNDAI MOTOR AMERICA
