Home >> Hyundai >> 2017 >> Tucson Value, FWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Entertainment Systems >> Audio/Video/Navigation System >> AVN (Audio Video Navigation) Head Unit >> Components And Components Location >> Components >> Notes

Components And Components Location: Components: Notes

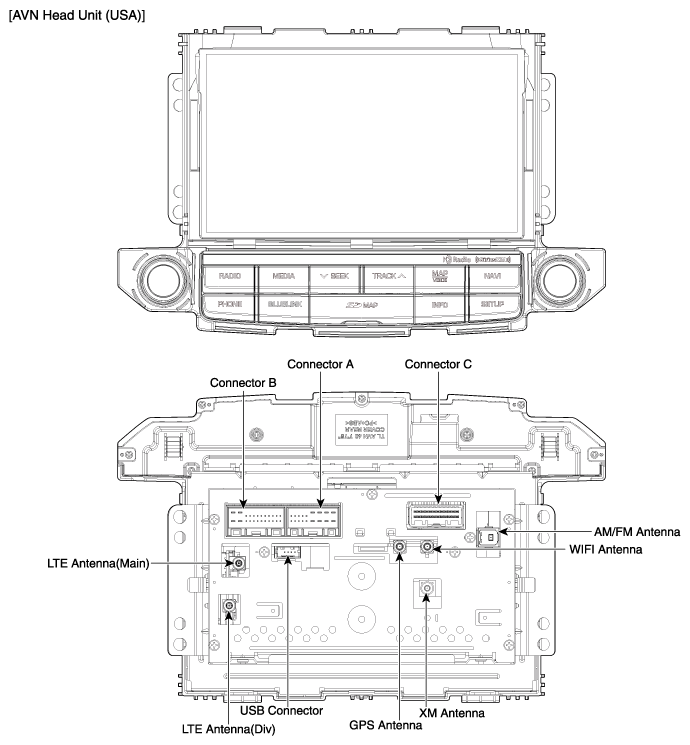

Fig 1: AVN Head Unit Components (USA)
G12042638Courtesy of HYUNDAI MOTOR AMERICA

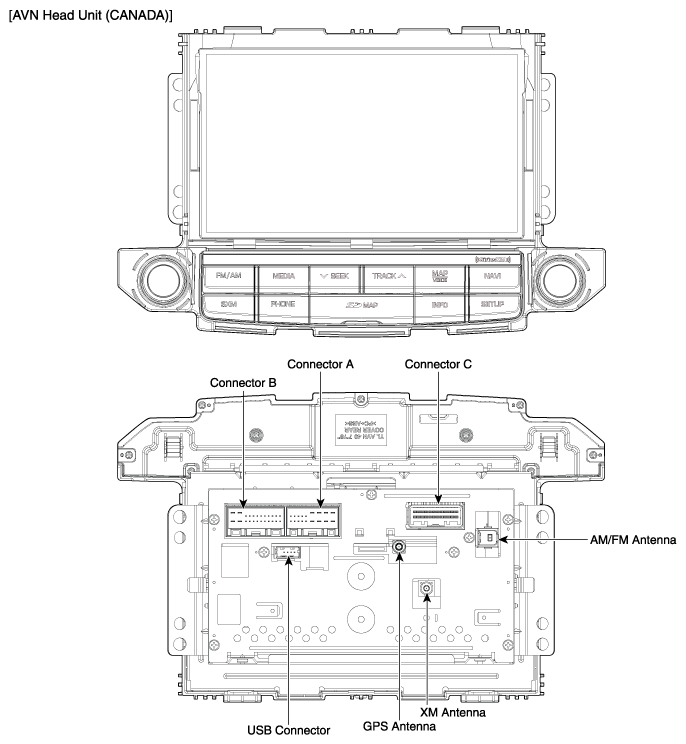

Fig 2: AVN Head Unit Components (CANADA)
G12042639Courtesy of HYUNDAI MOTOR AMERICA
