Compensation Requirement and Procedure

Simultaneous replacement of 4WD ECU (Controller) and coupling
- Does not require compensation.
Replacement of coupling only
- Reset the 4WD ECU's (Controller) clutch learning.

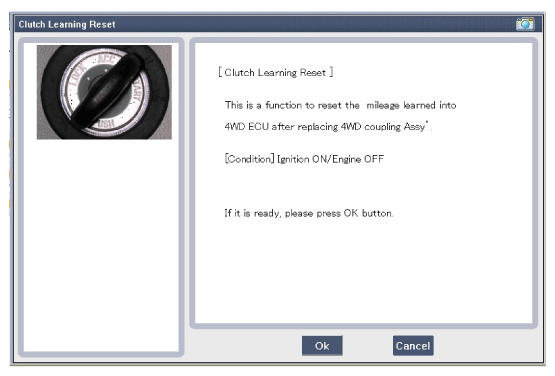

Fig 1: Screen Display - Reset 4WD ECU (Controller) Clutch Learning (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

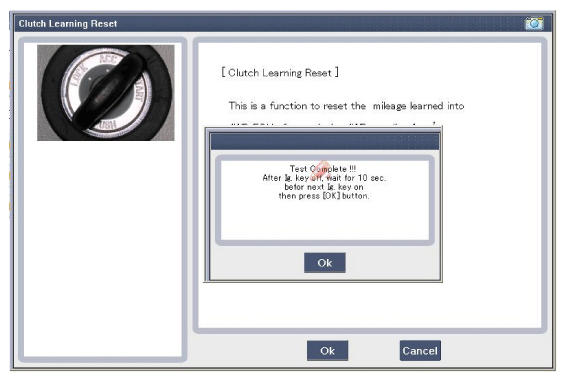

Fig 2: Screen Display - Reset 4WD ECU (Controller) Clutch Learning (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Replacement of 4WD ECU (Controller) only

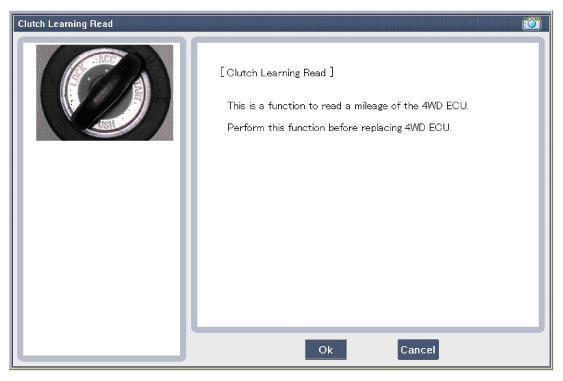

Fig 3: Screen Display - ECU Clutch Learning (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

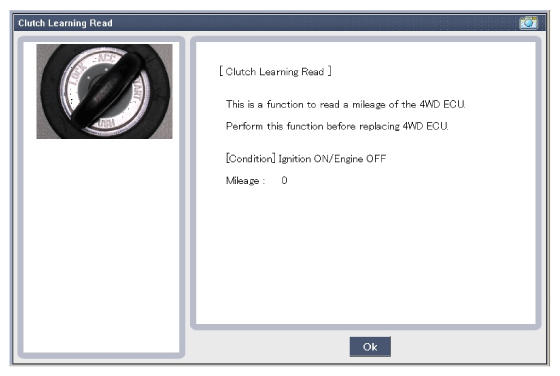

Fig 4: Screen Display - ECU Clutch Learning (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

After replacement: Enter the original ECU's clutch learning into the replacement ECU.

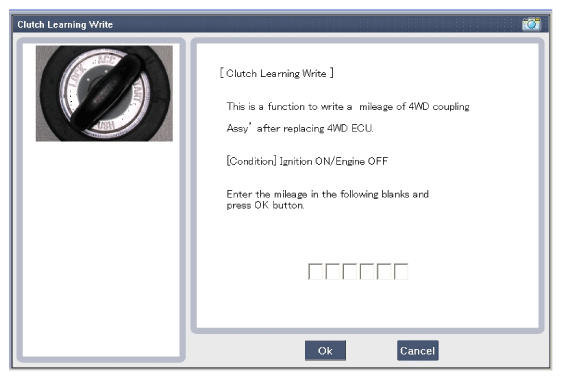

Fig 5: Screen Display - Enter Original ECU Clutch Learning Into Replacement ECU

Courtesy of HYUNDAI MOTOR AMERICA
