Repair Procedures: Installation

  1. Install the drive belt (A).
    Fig 1: Engine Drive Belt Routing Diagram
    G12038497Courtesy of HYUNDAI MOTOR AMERICA
  2. Adjust tension by tightening the alternator tension adjust bolt (B) and then install the mounting bolts (A).

    Tightening torque

    12 mm (0.47 in) bolt:

    19.6 ~ 26.5 N.m (2.0 ~ 2.7 kgf.m, 14.5 ~ 19.5 lb-ft)

    14 mm (0.55 in) bolt:

    29.4 ~ 41.2 N.m (3.0 ~ 4.2 kgf.m, 21.7 ~ 30.4 lb-ft)

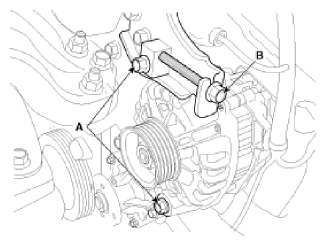

    Fig 2: Locating Alternator Tension Adjust Bolt And Mounting Bolts
    G12038498Courtesy of HYUNDAI MOTOR AMERICA
  3. Connect the battery negative terminal.
