Components (1)

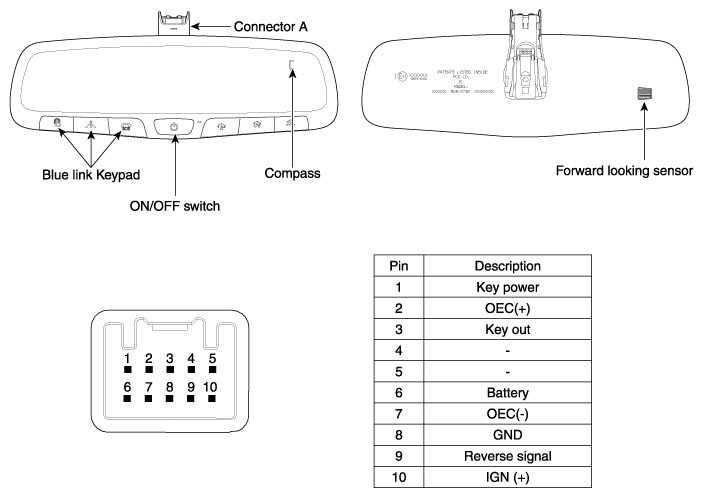

Fig 1: Electro Chromic Inside Rear View Mirror Components, Connector Terminals And Description Chart (1 Of 2)
G12043071Courtesy of HYUNDAI MOTOR AMERICA

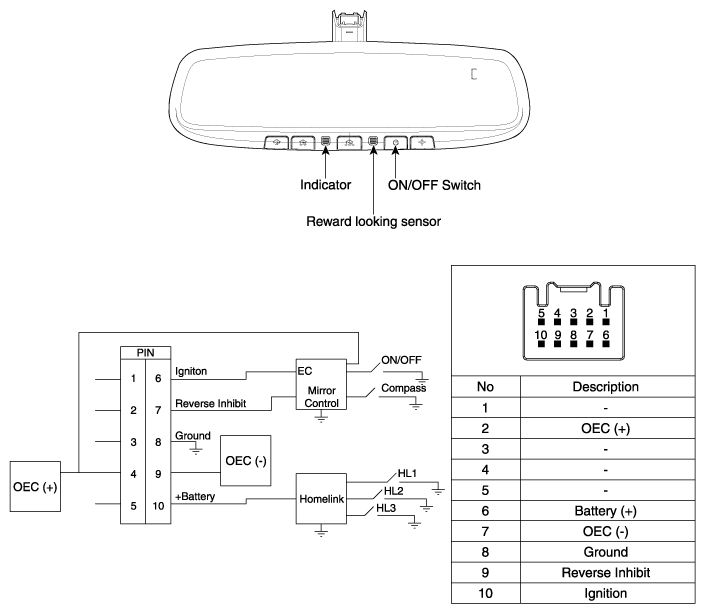

Fig 2: Electro Chromic Inside Rear View Mirror Components, Circuit, Connector Terminals And Description Chart (2 Of 2)
G12043072Courtesy of HYUNDAI MOTOR AMERICA
