Body Repair

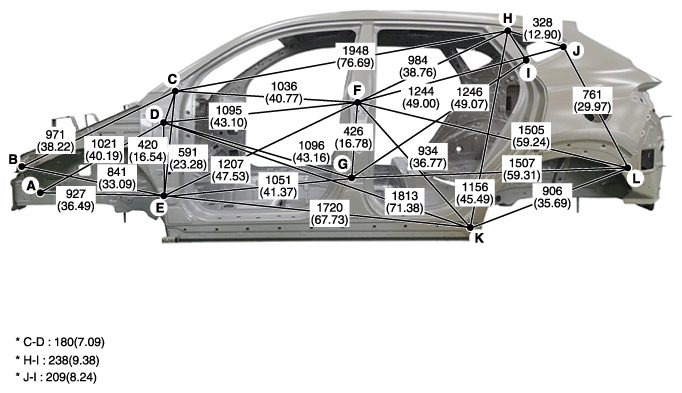

Fig 1: Side Body Actual-Measurement Dimensions
G12041977Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this figure above are actual-measurement dimensions. [Unit: mm (inch)]

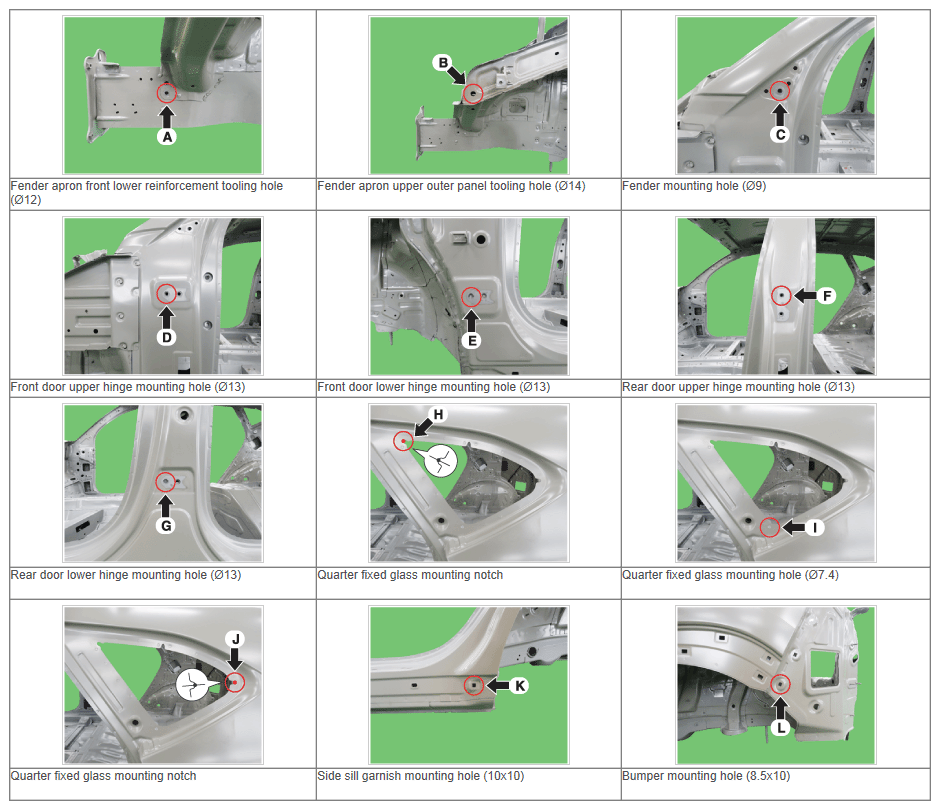

Fig 2: Locating Side Body Measurement Hole
G12041978Courtesy of HYUNDAI MOTOR AMERICA
