Interior D

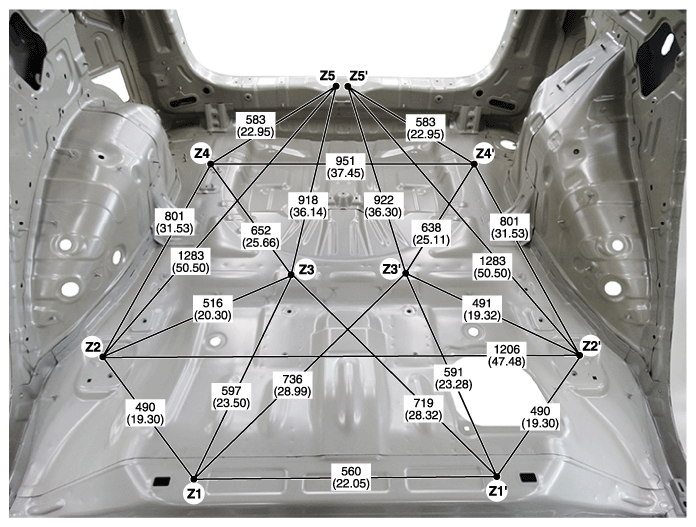

Fig 1: Interior D Actual-Measurement Dimensions

Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this figure above are actual-measurement dimensions. [Unit: mm (inch)]

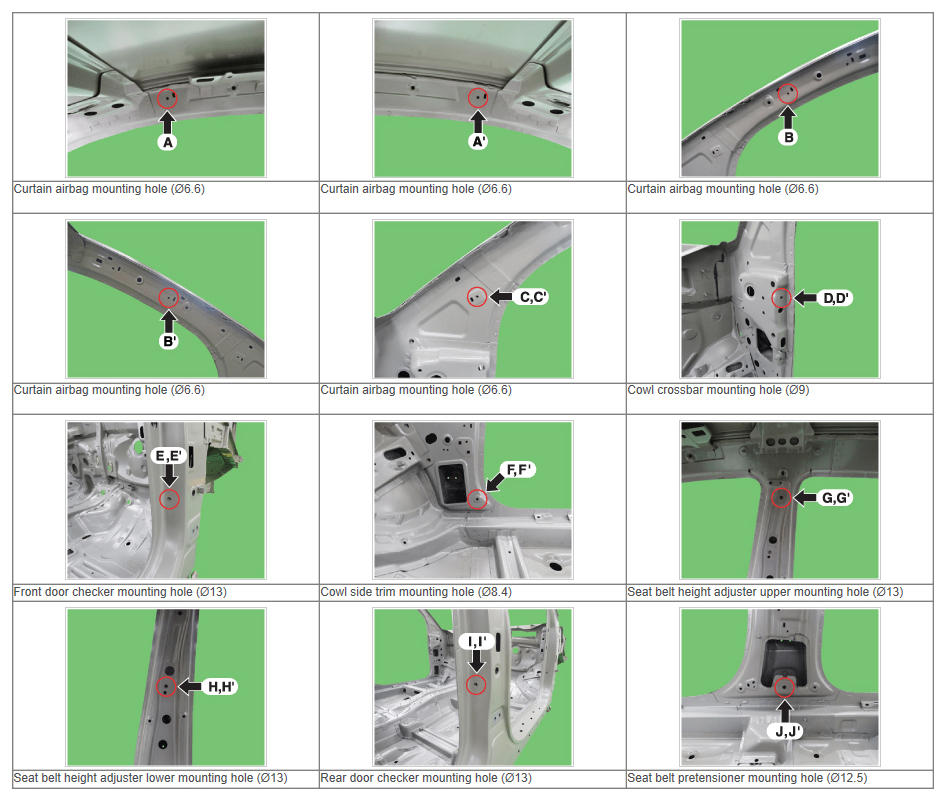

Fig 2: Locating Interior D Measurement Hole (1 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 3: Locating Interior D Measurement Hole (2 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

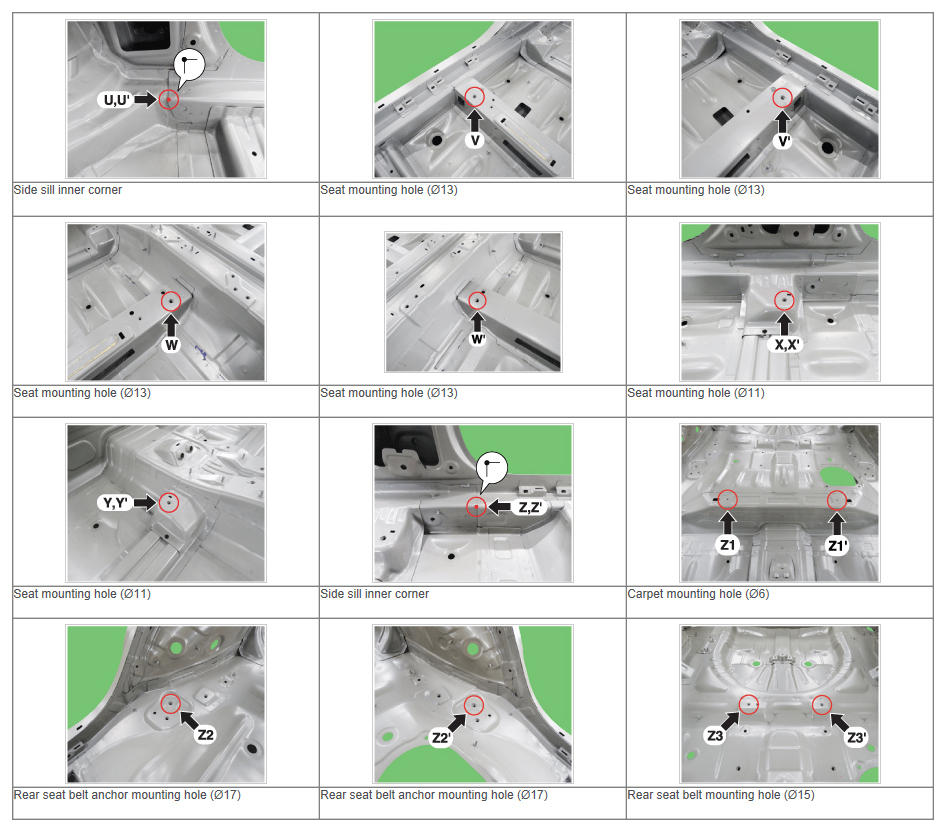

Fig 4: Locating Interior D Measurement Hole (3 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

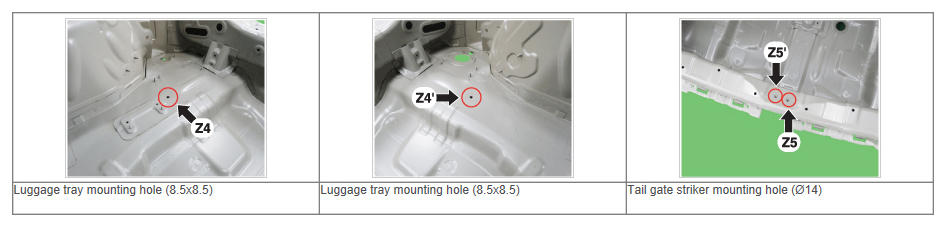

Fig 5: Locating Interior D Measurement Hole (4 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA
