Interior C

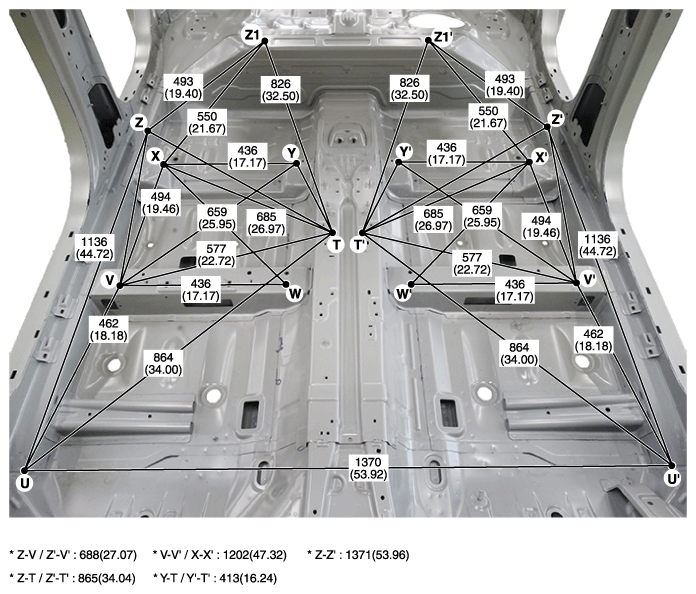

Fig 1: Interior C Actual-Measurement Dimensions
G12041981Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this figure above are actual-measurement dimensions. [Unit: mm (inch)]
