Interior A

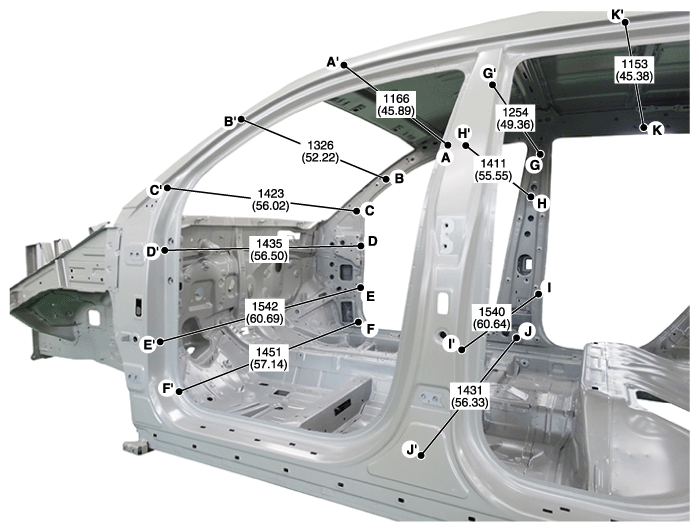

Fig 1: Interior A Actual-Measurement Dimensions
G12041979Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this figure above are actual-measurement dimensions. [Unit: mm (inch)]
