Front Cross Member

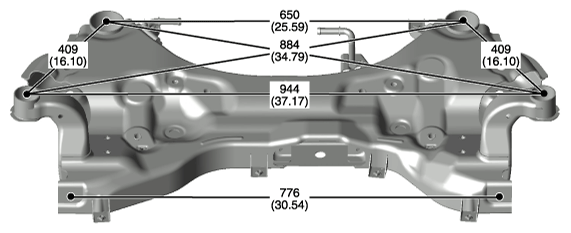

Fig 1: Front Cross Member Actual-Measurement Dimensions

Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this figure above are actual-measurement dimensions. [Unit: mm (inch)]
