Signal Waveform & Data

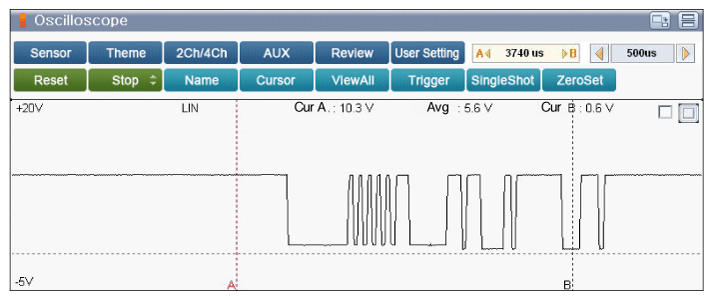

Fig 1: Screen Display - BCM And Rain Sensor LIN Signal Waveform

G12046309

Courtesy of HYUNDAI MOTOR AMERICA
