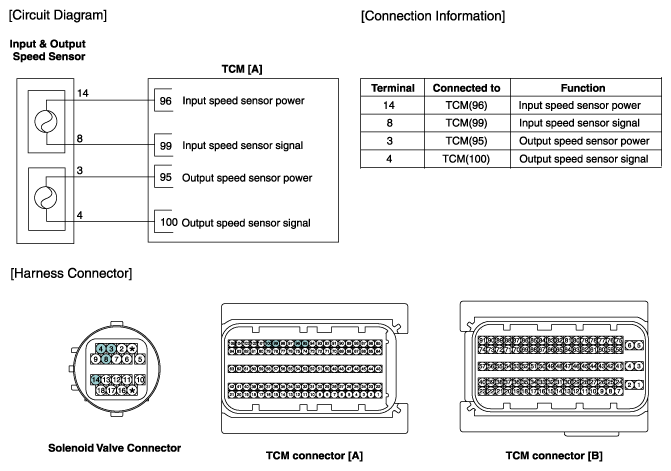

Home >> Hyundai >> 2017 >> Tucson SE, FWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 2.0L >> Output Speed Sensor >> Schematic Diagrams >> Circuit Diagram
