Components Location (2)

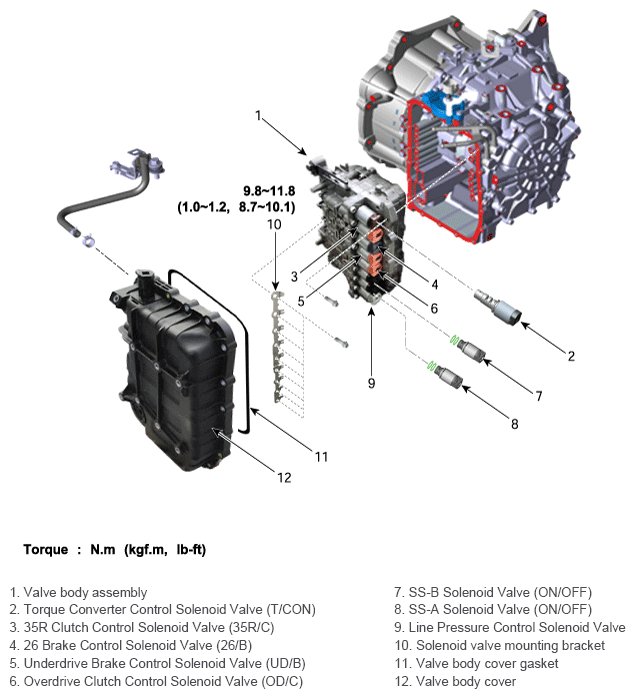

Fig 1: Automatic Transaxle Control System Components With Torque Specifications
G12044526Courtesy of HYUNDAI MOTOR AMERICA
