Measuring Resistance

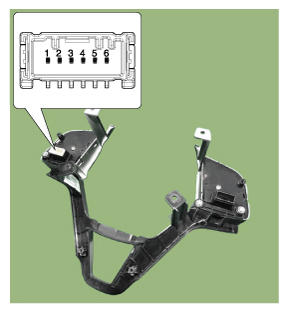

- Disconnect the cruise control switch connector from the control switch.
- Measure resistance between terminals on the control switch when each function switch is ON. (switch is pressed)
Function Switch Terminal Resistance CANCEL 3 - 5 330Ω ± 5% SET/- 3 - 5 550Ω ± 5% RES/+ 3 - 5 880Ω ± 5% ON/OFF 3 - 5 1.44 KΩ ± 5% - If not within specification, replace switch.
