Hyundai
>>
2017
>>
Sonata Plug-In Hybrid
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Automatic Transaxle Control System (PHEV)
>>
Output Speed Sensor
>>
Troubleshooting
>>
Signal Waveform
Signal Waveform

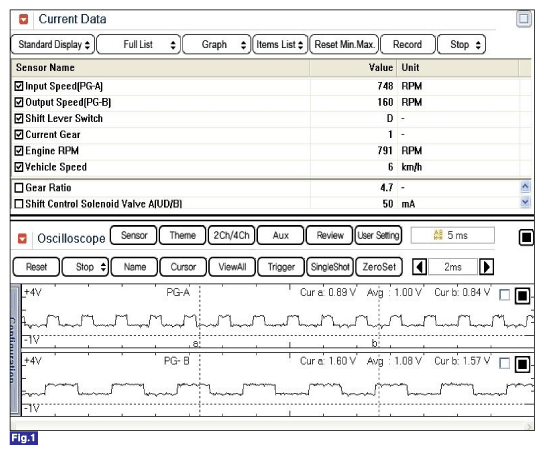

Fig 1: Input/Output Speed Sensor At Low Speed
Courtesy of HYUNDAI MOTOR AMERICA

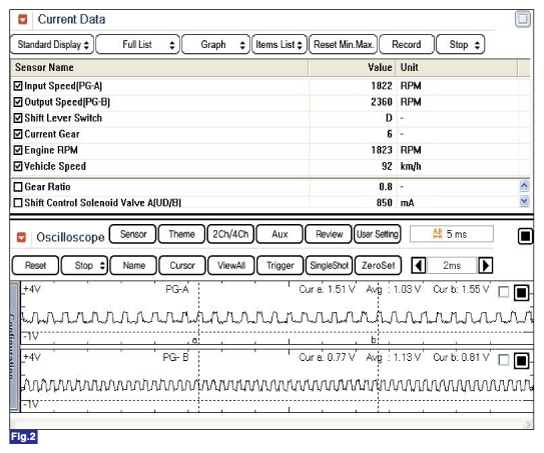

Fig 2: Input/Output Speed Sensor At High Speed
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
