Component Inspection

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

■ Actuator Test Check

Connect GDS to Data Link Connector (DLC)
IG key "ON"
Perform "Actuation Test" with GDS.

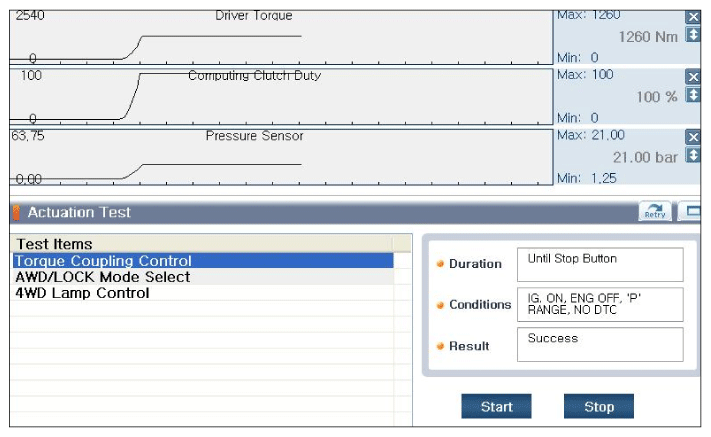

Fig 1: Scantool Display - Actuation Test
Courtesy of HYUNDAI MOTOR AMERICA
Are any DTCs present?
YES
- Substitute with a known-good "Coupling" and check for proper operation. If the problem is corrected, replace "Coupling" and then go to "Verification of Vehicle Repair " procedure.
NO
- Go to "Verification of Vehicle Repair " procedure.
