Repair Procedures: Replacement: [A/T]

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the gear boots (B) and gear knob (A).

Fig 1: Removing Gear Boots And Gear Knob
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the console upper cover (A).

Fig 2: Removing Console Upper Cover
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connectors (A).

Fig 3: Disconnecting Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Remove the console armrest tray (A).

Fig 4: Removing Console Armrest Tray
Courtesy of HYUNDAI MOTOR AMERICA

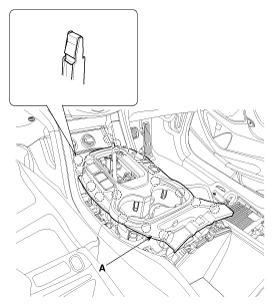

Remove the console tray met (A).

Fig 5: Removing Console Tray Met
Courtesy of HYUNDAI MOTOR AMERICA

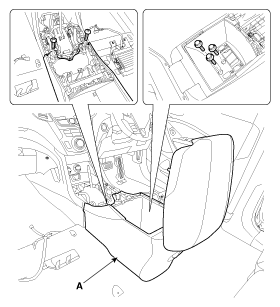

After loosening the mounting screws and bolts, then remove the console rear complete assembly (A).

Fig 6: Removing Console Rear Complete Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the power outlet connector (A).

Fig 7: Disconnecting Power Outlet Connector
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips.
