Component Location

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

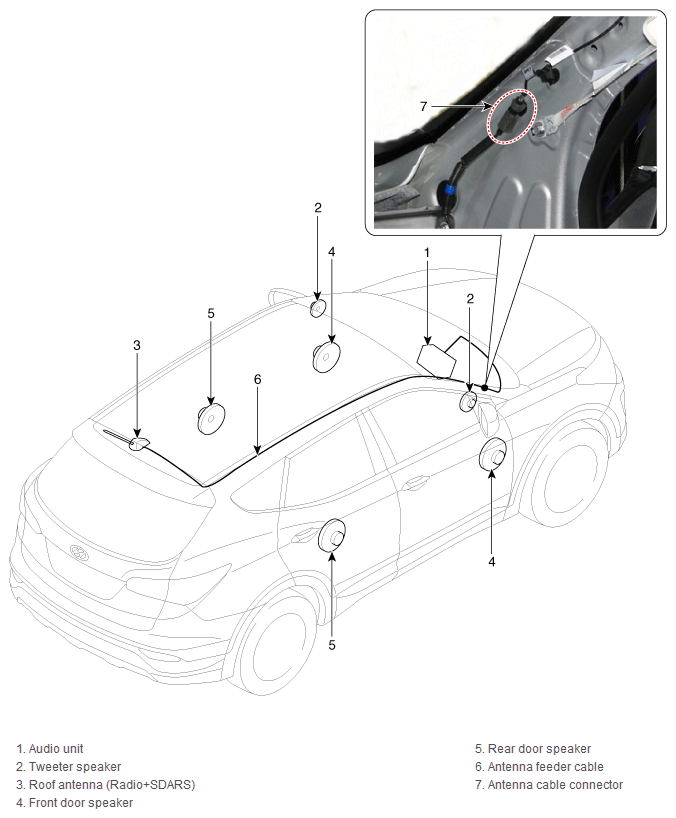

Fig 1: Audio Components
G12054269Courtesy of HYUNDAI MOTOR AMERICA

* SDARS: Satellite Digital Audio Radio Service
