[Audio (TFT)]
WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

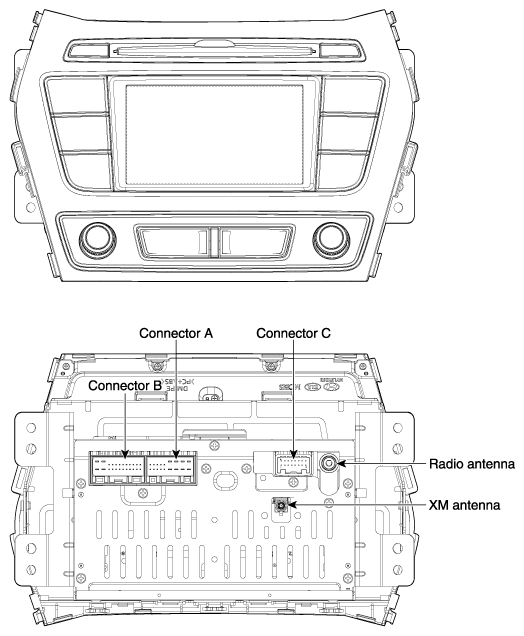

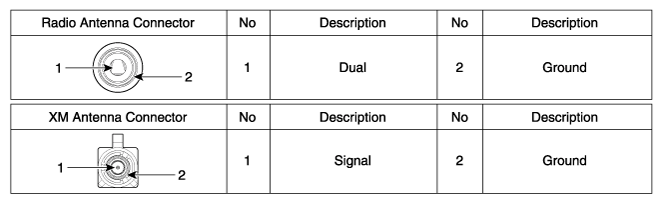

CONNECTOR PIN INFORMATION
| No | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | Rear left speaker (+) | CAN High | - |
| 2 | Front left speaker (+) | - (TMU Audio +) | - |
| 3 | Front right speaker (+) | - | Camera ground |
| 4 | Rear right speaker (+) | Steering wheel remote | Camera video input |
| 5 | - | - | - |
| 6 | - | USB D (+) | - |
| 7 | - | USB/iPod VDD | - |
| 8 | Illumination (+) | AUX R IN | - |
| 9 | - | AUX GND | - |
| 10 | Rear left speaker (-) | Mic (+) B/T | Camera battery (+) |
| 11 | Front left speaker (-) | ACC | P GND |
| 12 | Front right speaker (-) | B+ | R DETECT |
| 13 | Rear right speaker (-) | CAN Low | - |
| 14 | - | - (TMU Audio -) | - |
| 15 | - | Auto light | - |
| 16 | - | Speed | - |
| 17 | Illumination (-) | Remote GND | |
| 18 | Remote antenna | USB D (-) | |
| 19 | USB/iPod GND | ||
| 20 | AUX DETECT | ||
| 21 | AUX L IN | ||
| 22 | Mic (-) B/T | ||
| 23 | - | ||
| 24 | Power GND |
