[AUDIO (Display)]
WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

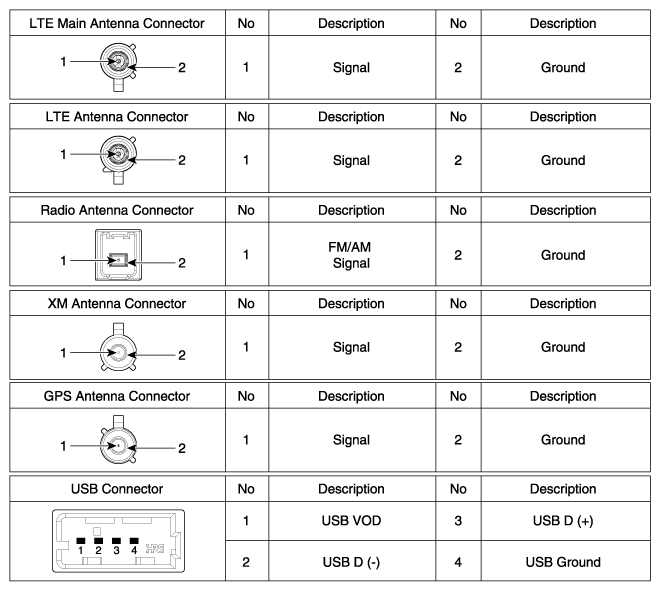

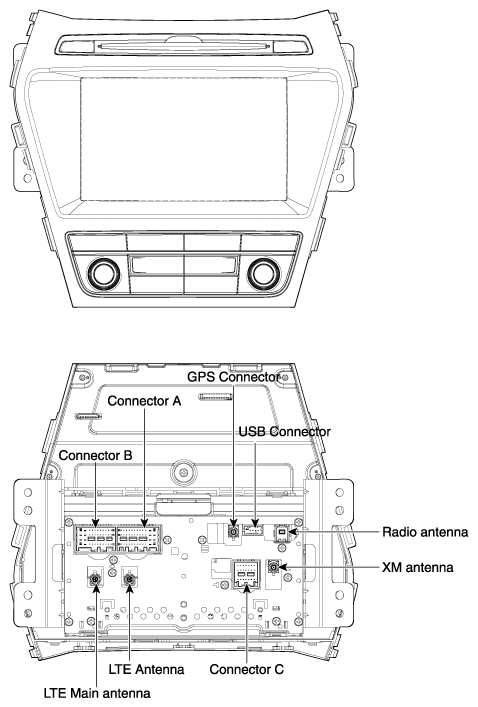

CONNECTOR PIN INFORMATION
| No | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | Rear left speaker (+) | - | Body CAN (+) |
| 2 | Rear left speaker (-) | Mic (+) | Chassis CAN (+) |
| 3 | - | - | - |
| 4 | - | - | - |
| 5 | - | Antenna remote | - |
| 6 | Camera power | Illumination (+) | - |
| 7 | Camera video input Camera video input (Y) | MM CAN (+) | - |
| 8 | - | - | Body CAN (-) |
| 9 | - | - | Chassis CAN (-) |
| 10 | AUX Right | Battery (+) | - |
| 11 | AUX Detect | Battery (+) | - |
| 12 | Steering wheel remote | GND | - |
| 13 | Front left speaker (+) | GND | - |
| 14 | Front left speaker (-) | Mic ground | - |
| 15 | Front right speaker (-) | Mic (-) | - |
| 16 | Front right speaker (+) | - | MTS Key input |
| 17 | - | - | - |
| 18 | - | - | - |
| 19 | - | Illumination (-) | - |
| 20 | Camera ground | MM CAN (-) | - |
| 21 | Camera video ground Camera video input (Y) ground | - | - |
| 22 | - | ACC | |
| 23 | - | - | |
| 24 | AUX Left | - | |
| 25 | AUX Ground | - | |
| 26 | Steering ground | - | |
| 27 | - | - | |
| 28 | - | Parking | |
| 29 | - | P-Position | |
| 30 | - | Auto light | |
| 31 | - | - | |
| 32 | - | - | |
| 33 | Camera video shield Camera video (Y) shield | IGN 1 | |
| 34 | - | - | |
| 35 | - | - | |
| 36 | - | ||
| 37 | - | ||
| 38 | Speed |
