Components and Components Location: Components

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

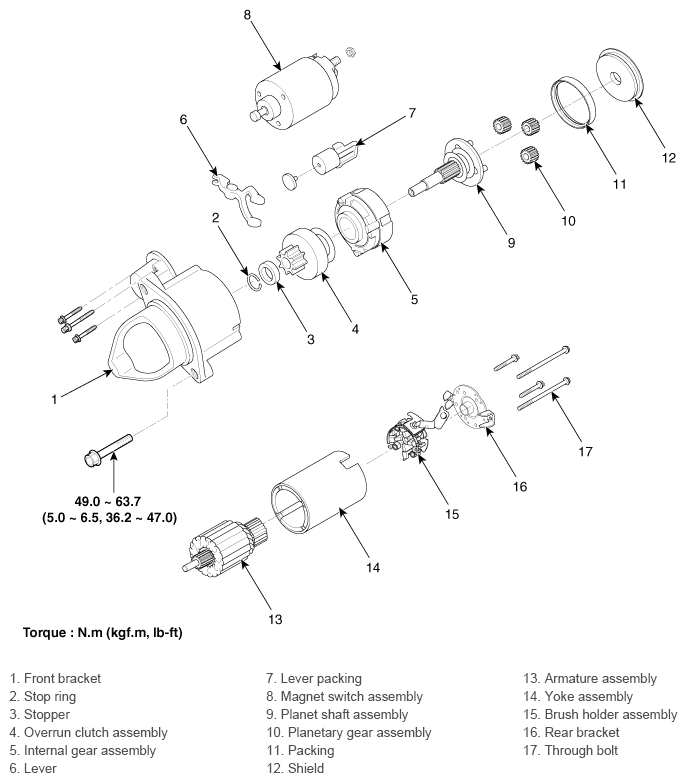

Fig 1: Exploded View Of Starter Components With Torque Specification
G12053798Courtesy of HYUNDAI MOTOR AMERICA
