WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

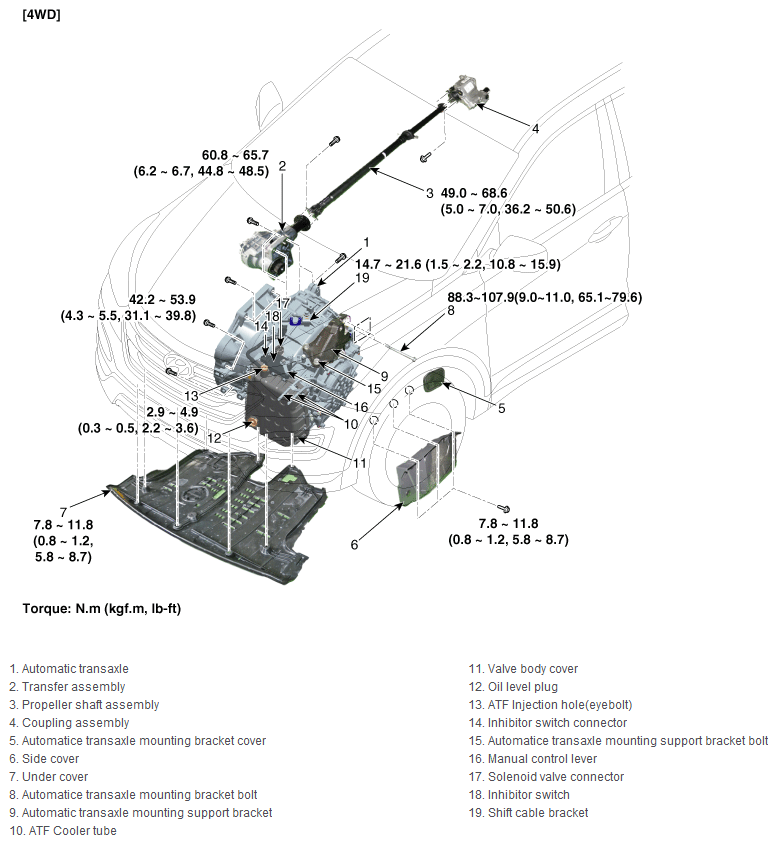

Fig 1: Automatic Transaxle Components With Torque Specification (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

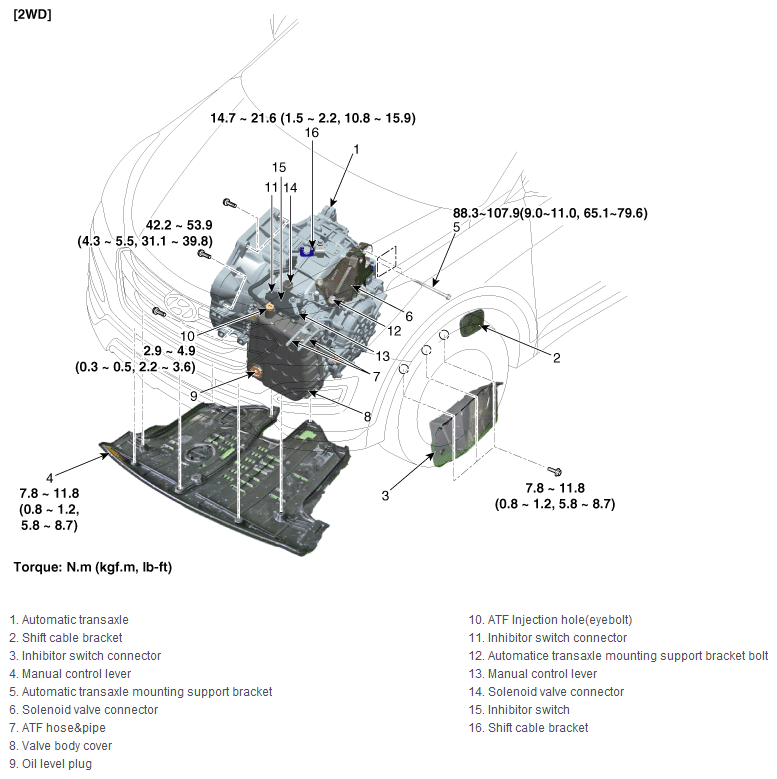

Fig 2: Automatic Transaxle Components With Torque Specification (2 Of 2)
