Repair Procedures: Adjustment

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. After loosening the tail gate hinge (A) mounting bolt, adjust the tail gate by moving it up or down, or right or left.
  2. Adjust the tail gate height by turning the tail gate overslam bumpers (B).
  3. After loosening the tail gate striker (C) mounting bolts, adjust the tail gate striker by moving it up or down, or right or left.

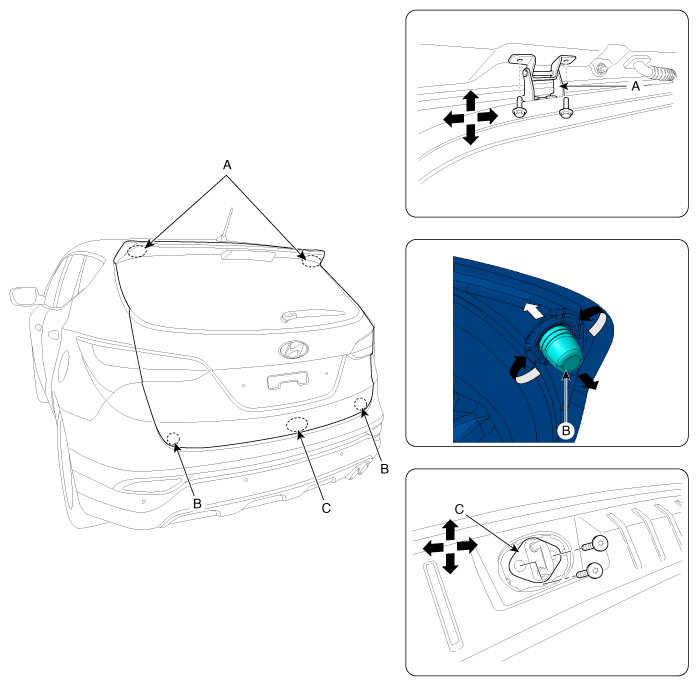

Fig 1: Loosening Tail Gate Hinge Mounting Bolt
G12056584Courtesy of HYUNDAI MOTOR AMERICA
