Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Be careful not to scratch the door trim and other parts.

Using a screwdriver or remover, remove the front door quadrant inner cover (A).

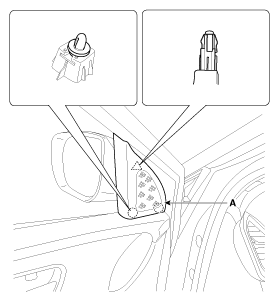

Fig 1: Removing Front Door Quadrant Inner Cover
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the tweeter speaker connector (A).

Fig 2: Disconnecting Tweeter Speaker Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the front door pull cap (A).

Fig 3: Removing Front Door Pull Cap
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, then remove the front door trim (A).

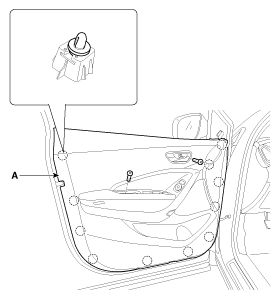

Fig 4: Removing Front Door Trim Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Remove the front door inside handle cage (A).

Fig 5: Removing Front Door Inside Handle Cage
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the outside rear view mirror switch connector (A), power window switch connector (B), front door lamp connector (C).

Fig 6: Disconnecting Outside Rear View Mirror Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips.
