Starting System: Troubleshooting

WARNING: This page is about a different car, the 2016 Hyundai Elantra GT, 2016 Hyundai Elantra, 2015 Hyundai Elantra GT, and 2015 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The battery must be in good condition and fully charged for this troubleshooting.

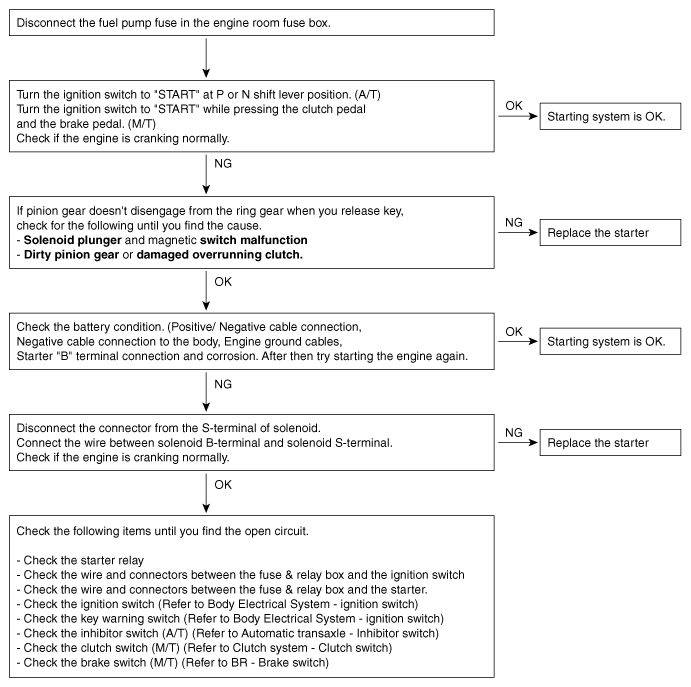

Fig 1: Starter Troubleshooting Chart
G10749718Courtesy of HYUNDAI MOTOR AMERICA
