Components and Components Location: Components
WARNING: This page is about a different car, the 2016 Hyundai Elantra GT and 2015 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

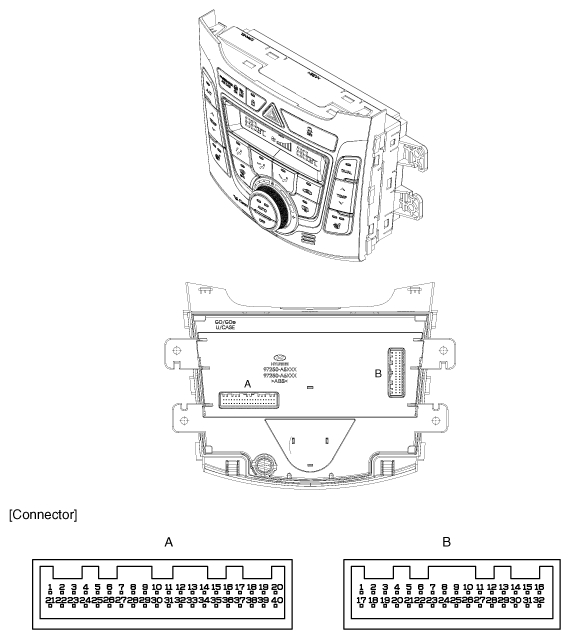

CONNECTOR PIN FUNCTION (1 Of 2)
| Connector | Pin No | Function | Connector | Pin No | Function |
|---|---|---|---|---|---|
| A | 1 | Tail Lamp (+) | A | 21 | Detent Out (+) |
| 2 | Sensor REF (+5V) | 22 | PAB IGN 1 | ||
| 3 | C-CAN (High) | 23 | Seat heater Switch (Left) | ||
| 4 | C-CAN (Low) | 24 | Seat heater Switch (Right) | ||
| 5 | Mode Actuator (Vent) | 25 | Seat Heater Indicator - Low (Left) | ||
| 6 | Mode Actuator (Defog) | 26 | Seat Heater Indicator - Low (Right) | ||
| 7 | Mode Actuator Feedback | 27 | Ambient Temperature Sensor (+) | ||
| 8 | Intake Actuator (Fresh) | 28 | Evaporator Temperature Sensor (+) | ||
| 9 | Intake Actuator (Recirculation) | 29 | Humidity (PWM) | ||
| 10 | Intake Actuator Feedback | 30 | Photo Sensor (-) - Left | ||
| 11 | K-Line | 31 | PAB OFF Signal | ||
| 12 | HTD (Rear Defrost Indicator) | 32 | Photo Sensor (-) - Right | ||
| 13 | Rear Defrost Switch | 33 | ECV + | ||
| 14 | Temperature Actuator (Cool) - Driver | 34 | ECV - (Ground) | ||
| 15 | Temperature Actuator (Warm) - Driver | 35 | FET (Gate) | ||
| 16 | Temperature Actuator Feedback - Driver | 36 | Seat Heater Indicator - High (Left) | ||
| 17 | - | 37 | - | ||
| 18 | - | 38 | PTC Relay | ||
| 19 | - | 39 | - | ||
| 20 | Rheostat (ILL-) | 40 | Seat Heater Indicator - High (Right) |
CONNECTOR PIN FUNCTION (2 Of 2)
| Connector | Pin No | Function | Connector | Pin No | Function |
|---|---|---|---|---|---|
| B | 1 | Ground | B | 17 | Ground |
| 2 | Sensor Ground | 18 | Hazard Signal | ||
| 3 | FET (Drain Feedback) | 19 | Temperature Actuator (Cool) - Passenger | ||
| 4 | Ionizer Diagnosis | 20 | Temperature Actuator (Warm) - Passenger | ||
| 5 | Clean Signal | 21 | Temperature Actuator Feedback | ||
| 6 | Ion Signal | 22 | - | ||
| 7 | - | 23 | - | ||
| 8 | - | 24 | Blower Motor (+) | ||
| 9 | - | 25 | - | ||
| 10 | - | 26 | - | ||
| 11 | PAB ON Signal | 27 | - | ||
| 12 | Active ECO Signal | 28 | - | ||
| 13 | - | 29 | - | ||
| 14 | - | 30 | - | ||
| 15 | - | 31 | Battery | ||
| 16 | IGN 2 | 32 | IGN 1 |
