Component Location

WARNING: This page is about a different car, the 2016 Hyundai Elantra GT and 2015 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

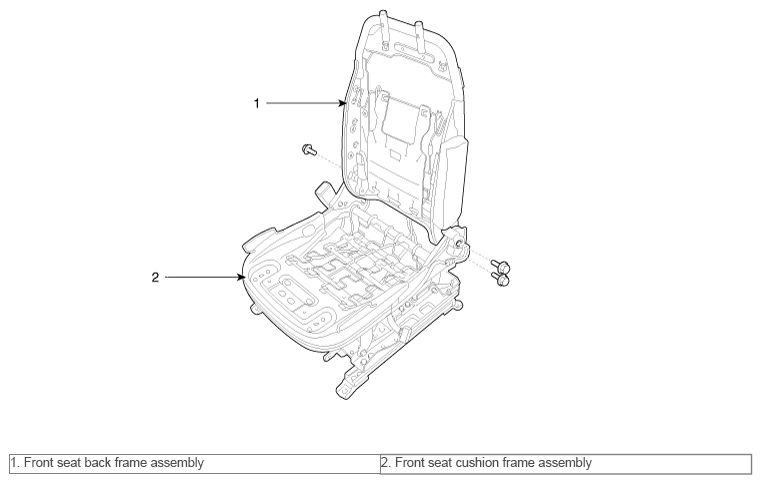

Fig 1: Front Seat Frame Assembly Components Location
G10751172Courtesy of HYUNDAI MOTOR AMERICA
