Components and Components Location: Components

WARNING: This page is about a different car, the 2015 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.

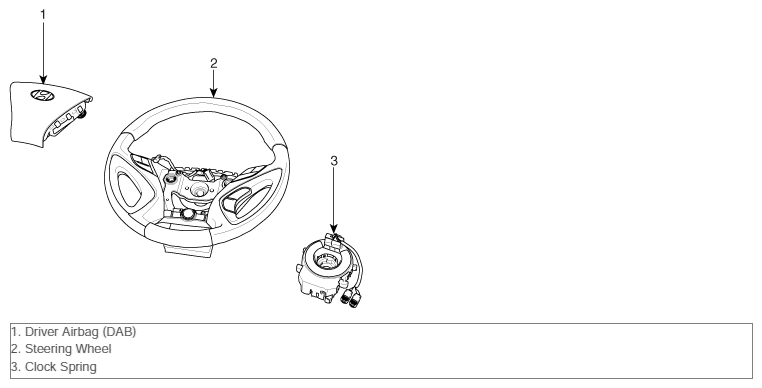

Fig 1: Identifying Driver Airbag, Steering Wheel & Clock Spring
G10589208Courtesy of HYUNDAI MOTOR AMERICA
