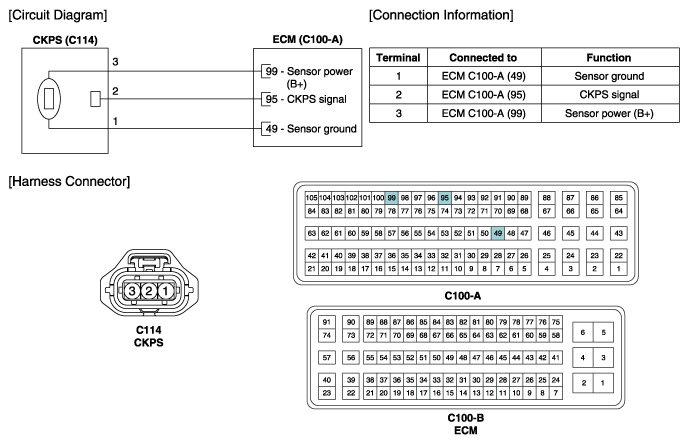

Home >> Hyundai >> 2017 >> Sonata Plug-In Hybrid >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (PHEV) >> Crankshaft Position Sensor (CKPS) >> Schematic Diagrams >> Circuit Diagram
