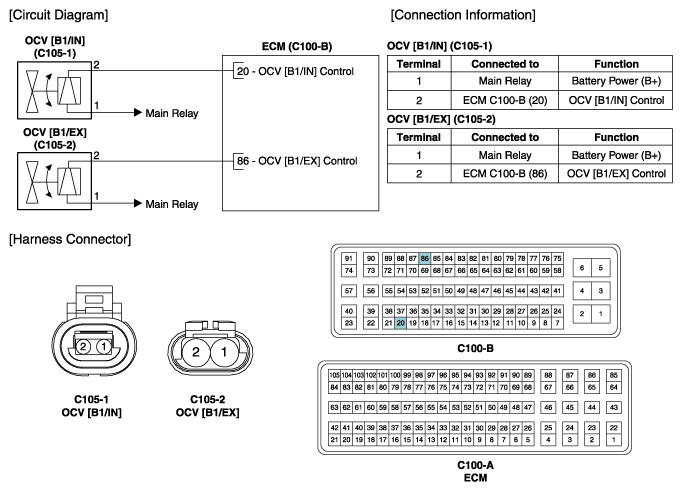

Home >> Hyundai >> 2017 >> Sonata Plug-In Hybrid >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (PHEV) >> CVVT Oil Control Valve (OCV) >> Schematic Diagrams >> Circuit Diagram
