Components and Components Location: Components

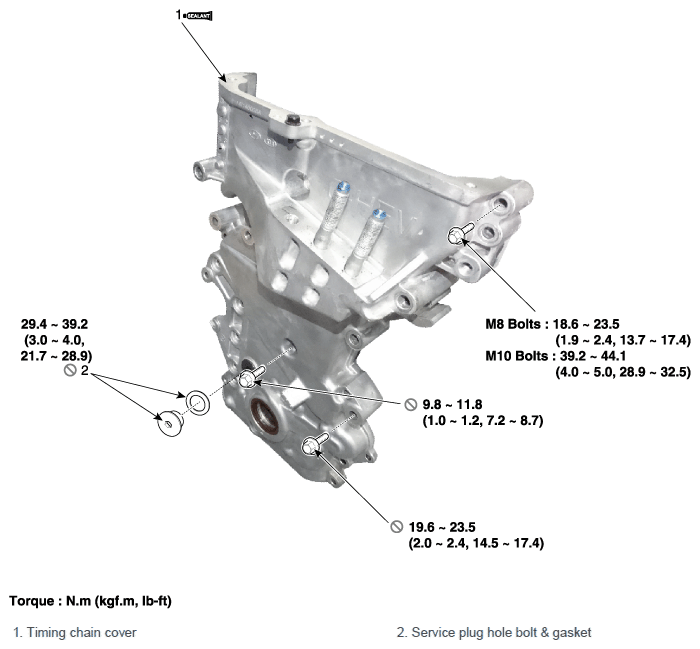

Fig 1: Timing Chain Cover With Torque Specification

G11630409

Courtesy of HYUNDAI MOTOR AMERICA
