Components and Components Location: Components

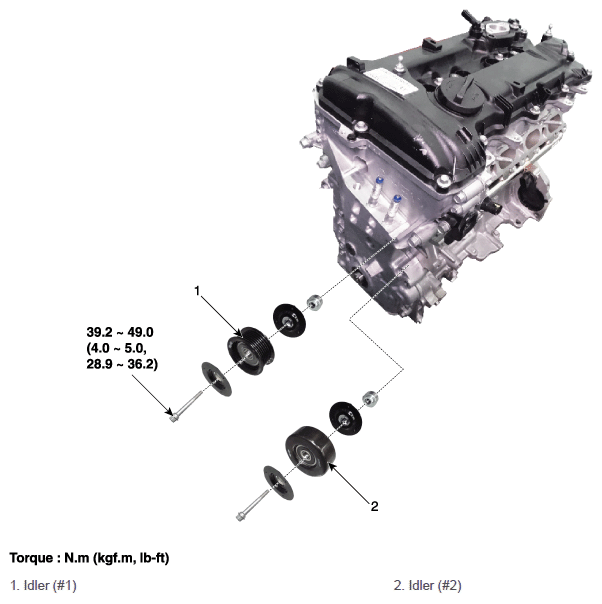

Fig 1: Idler Parts With Torque Specification

G11630394

Courtesy of HYUNDAI MOTOR AMERICA
