Components and Components Location: Components

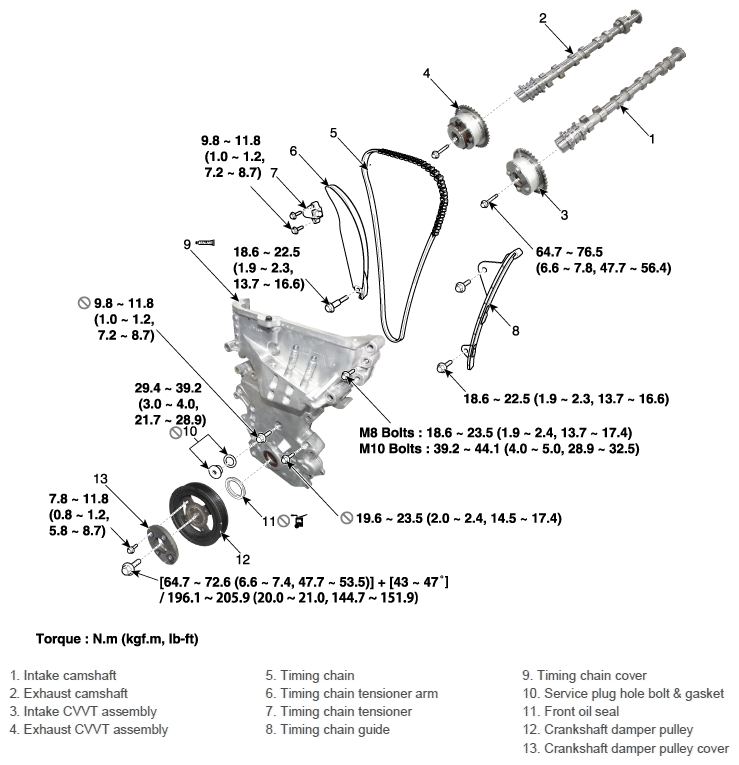

Fig 1: Exploded View Of Timing System With Torque Specification

G11630386

Courtesy of HYUNDAI MOTOR AMERICA
