Home >> Hyundai >> 2017 >> Sonata Plug-In Hybrid >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System (PHEV) >> Components and Components Location >> Components

Components and Components Location: Components

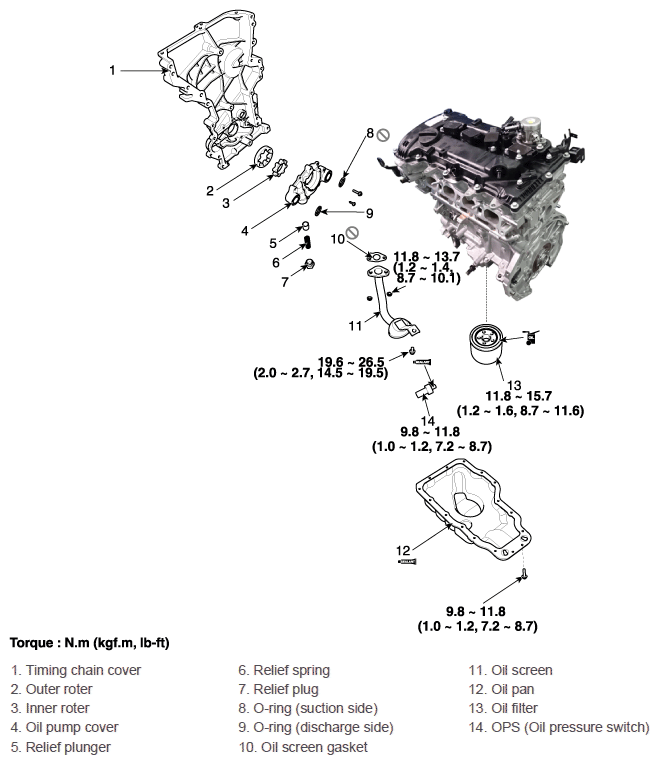

Fig 1: Exploded View Of Lubrication System With Torque Specification

G11630667

Courtesy of HYUNDAI MOTOR AMERICA
