Components and Components Location: Components

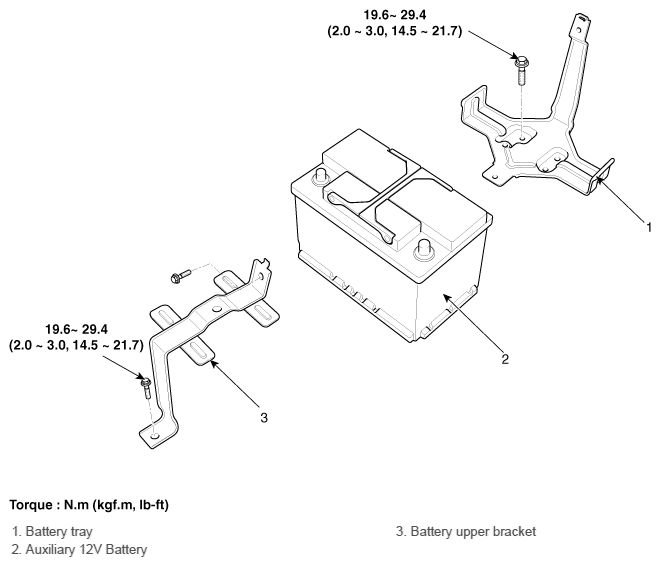

Fig 1: Exploded View Of Auxiliary 12V Battery With Torque Specification

G11630756

Courtesy of HYUNDAI MOTOR AMERICA
