Components and Components Location: Components

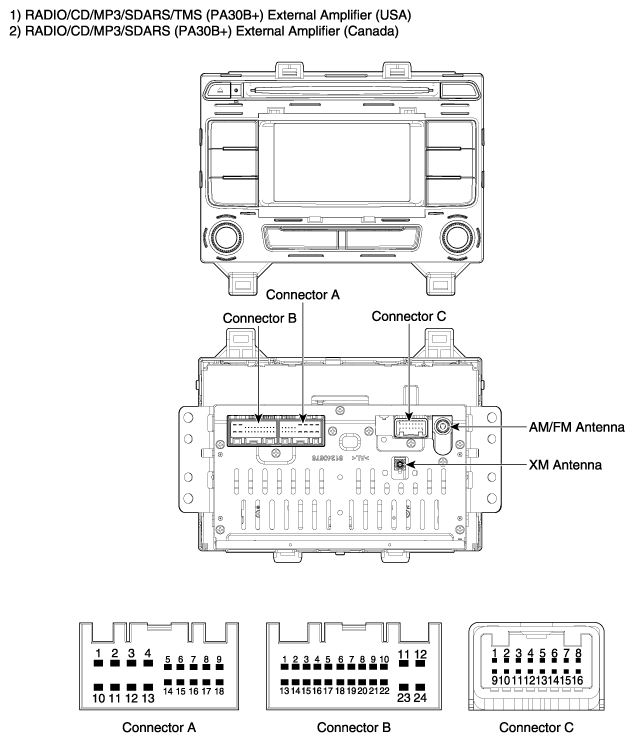

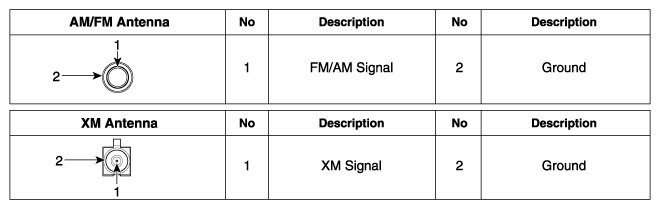

Connector Pin Information
| No | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | - | - | - |
| 2 | - | TMU audio (+) USA Only | - |
| 3 | - | - | Camera ground |
| 4 | - | Steering wheel remote | Camera video input |
| 5 | S. PDIF GND | - | - |
| 6 | S. PDIF ON | USB D (+) | - |
| 7 | - | USB / IPOD VDD | - |
| 8 | Illumination (+) | AUX R In | - |
| 9 | - | AUX GND | - |
| 10 | - | Mic (+) B/T | Camera battery (+) |
| 11 | - | ACC | Parking ground |
| 12 | - | B+ | R detector |
| 13 | - | CAN Low | - |
| 14 | - | TMU Audio (-) USA Only | - |
| 15 | S. PDIF DP | Auto light | - |
| 16 | N. C | Speed | - |
| 17 | Illumination (-) | Remo GND | |
| 18 | Remote Antenna | USB D (-) | |
| 19 | IPOD / USB GND | ||
| 20 | AUX DETECT | ||
| 21 | AUX L IN | ||
| 22 | MIC (-) B/T | ||
| 23 | - | ||
| 24 | Power GND |
Connector Pin Information
| No. | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | Rear left speaker (+) | CAN High | - |
| 2 | Front left speaker (+) | TMU audio (+) | - |
| 3 | Front right speaker (+) | - | Camera ground |
| 4 | Rear right speaker (+) | Steering wheel remote | Camera video input |
| 5 | - | - | - |
| 6 | - | USB D (+) | - |
| 7 | - | - | - |
| 8 | Illumination (+) | AUX R IN | - |
| 9 | - | AUX GND | - |
| 10 | Rear left speaker (-) | Mic (+) B/T | Camera battery (+) |
| 11 | Front left speaker (-) | ACC | Parking ground |
| 12 | Front right speaker (-) | B+ | R detector |
| 13 | Rear right speaker (-) | CAN Low | - |
| 14 | - | TMU audio (-) | - |
| 15 | - | Auto light | - |
| 16 | - | Speed | - |
| 17 | Illumination (-) | Remote GND | |
| 18 | Remote antenna | USB D (-) | |
| 19 | - | ||
| 20 | AUX DETECT | ||
| 21 | AUX L IN | ||
| 22 | Mic (-) B/T | ||
| 23 | - | ||
| 24 | Power GND |
