Section 28 (Automatic Transaxle Control System (HEV))
>>
Output Speed Sensor
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

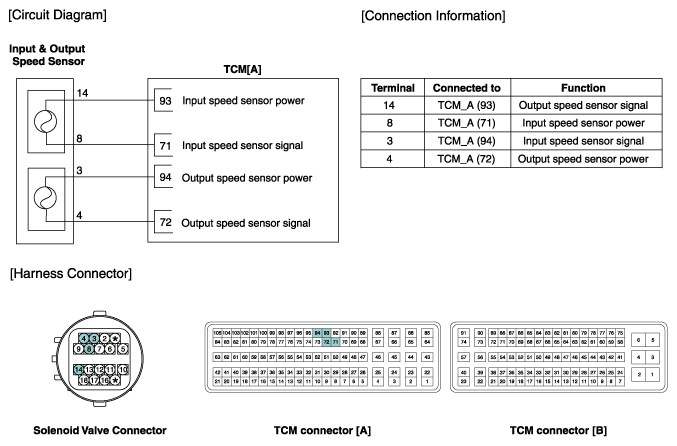

Fig 1: Output Speed Sensor Circuit
Courtesy of HYUNDAI MOTOR AMERICA
