Repair Procedures: Inspection

  1. Measure the primary coil resistance between terminals 1 and 2.

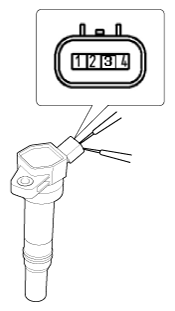

    Fig 1: Measuring Primary Coil Resistance Between Terminals 1 And 2
    G11995255Courtesy of HYUNDAI MOTOR AMERICA

    Standard value:  0.56 Ω ± 10%
