Hyundai
>>
2017
>>
Sonata Limited 2.0T
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 2.0L (Except HEV)
>>
Components And Components Location
>>
Components Location
Components Location

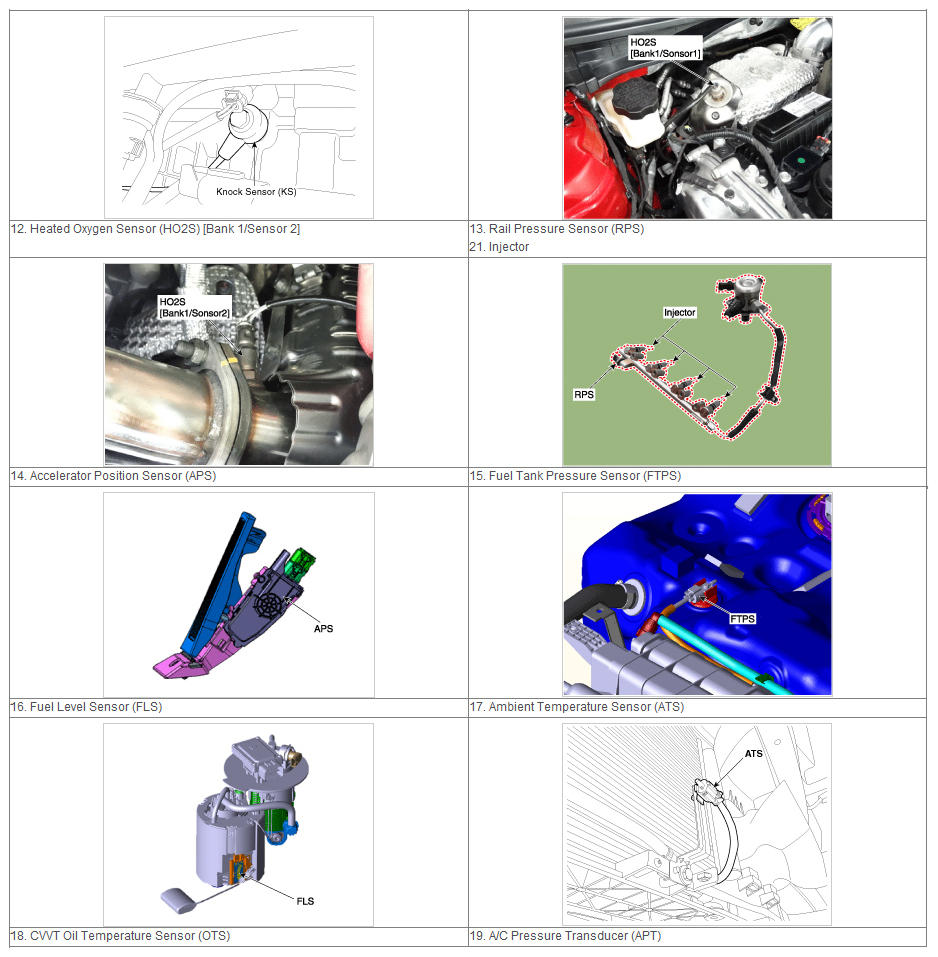

Fig 1: Engine Control System Components (1 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

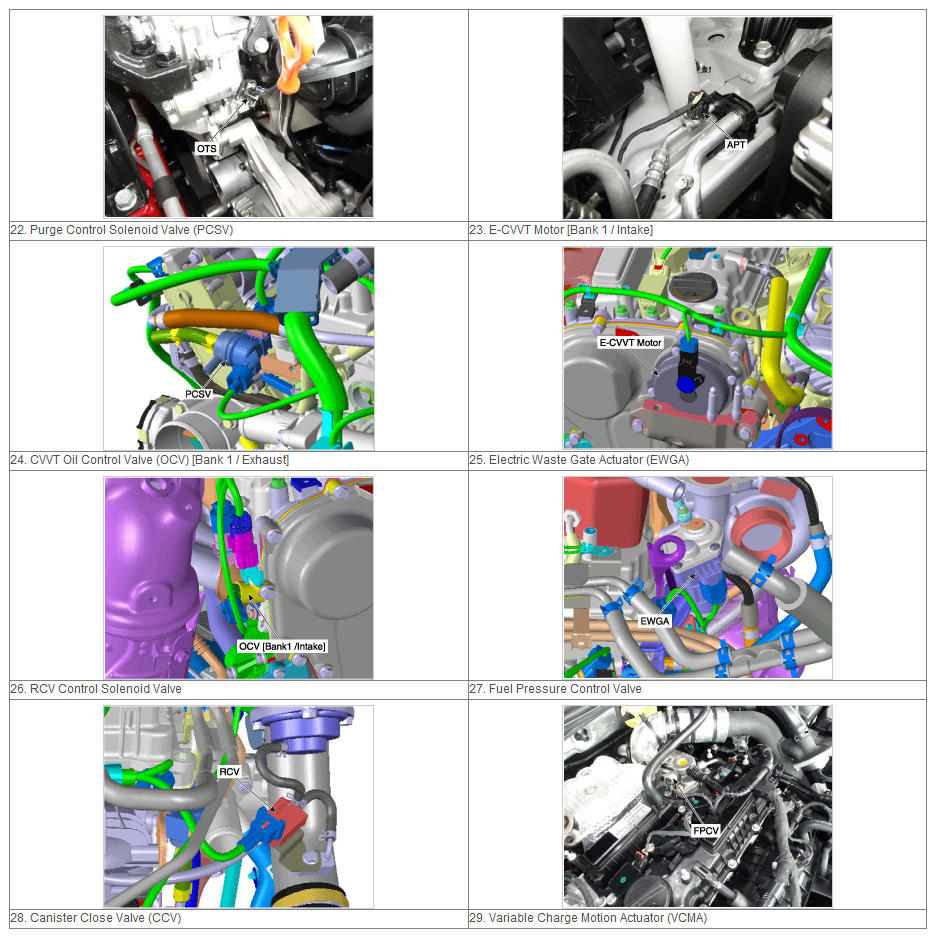

Fig 2: Engine Control System Components (2 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

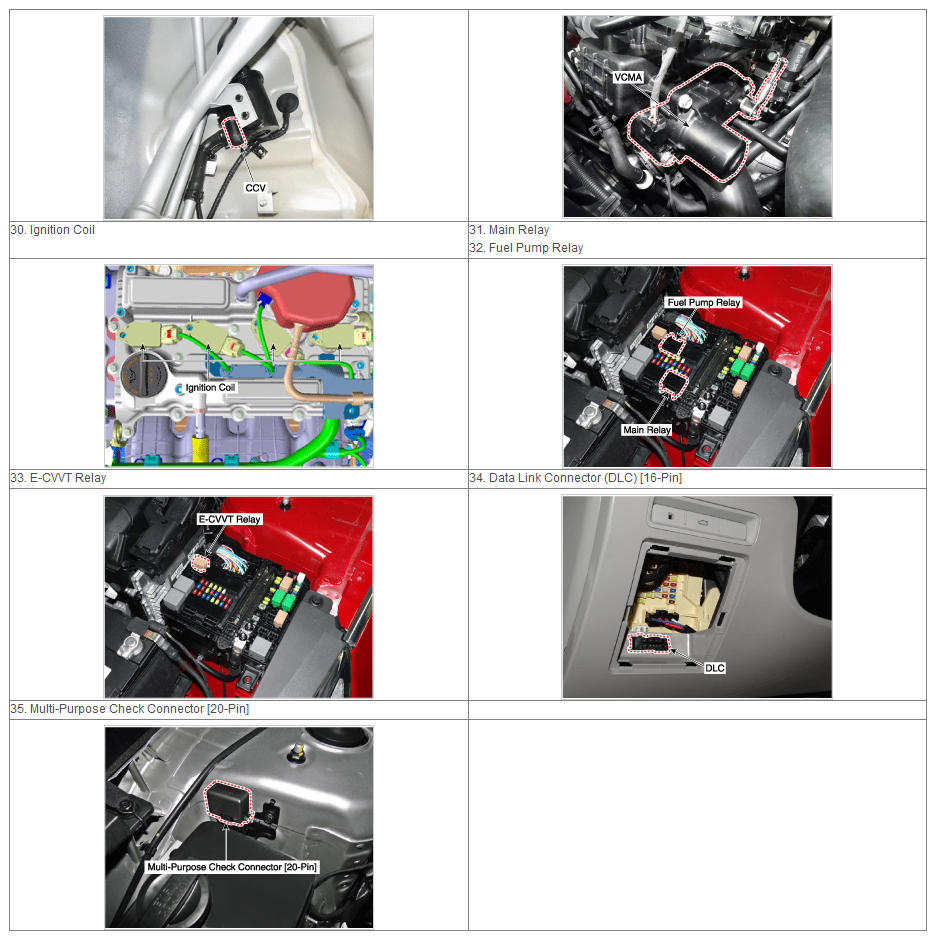

Fig 3: Engine Control System Components (3 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

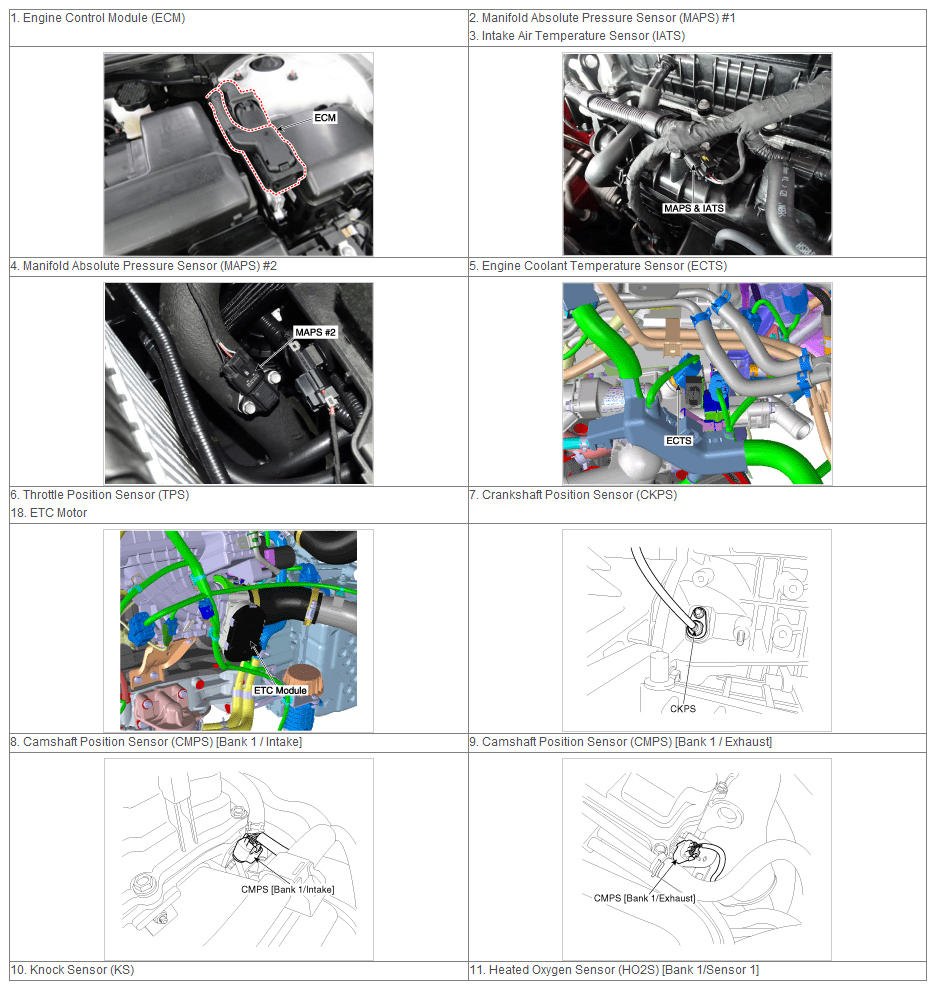

Fig 4: Engine Control System Components (4 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

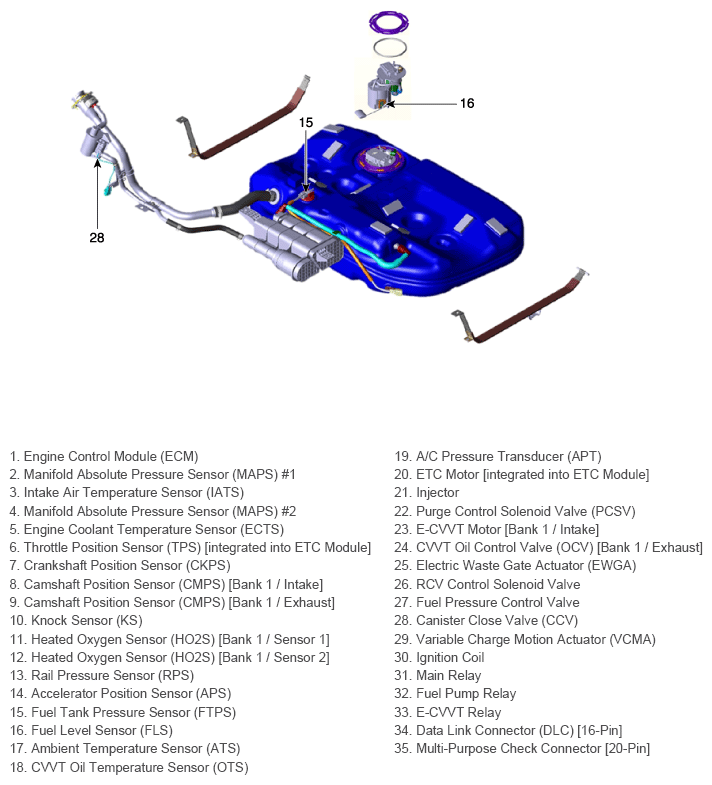

Fig 5: Engine Control System Components (5 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

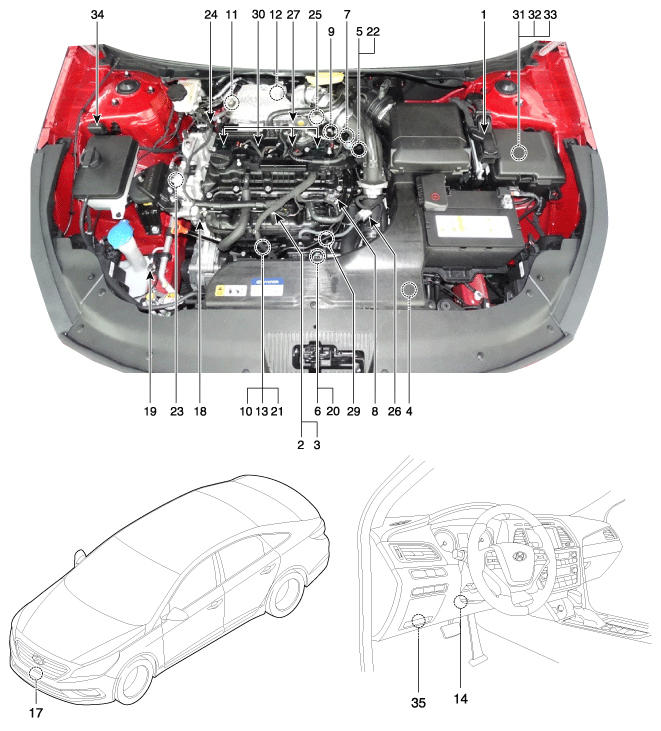

Fig 6: Engine Control System Components (6 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
