Components And Components Location: Component

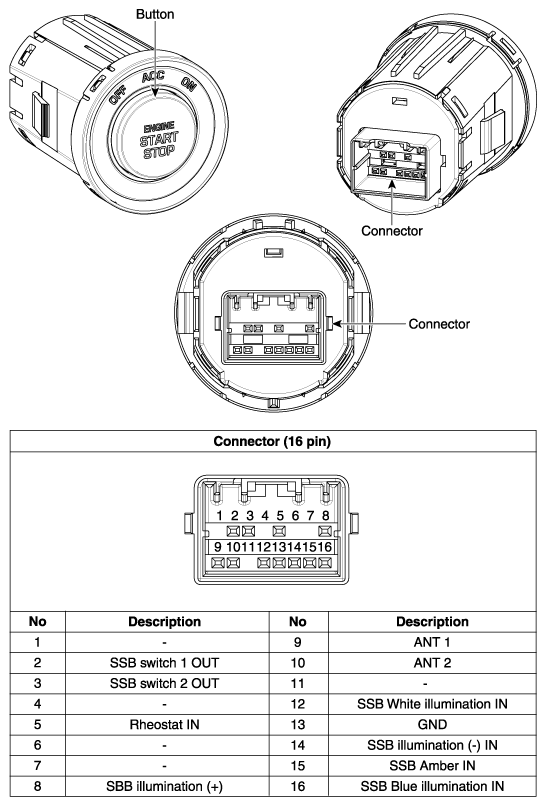

Fig 1: Start Stop Button Connector Terminals Description Chart

G11990074

Courtesy of HYUNDAI MOTOR AMERICA
