Driver Power Window Switch

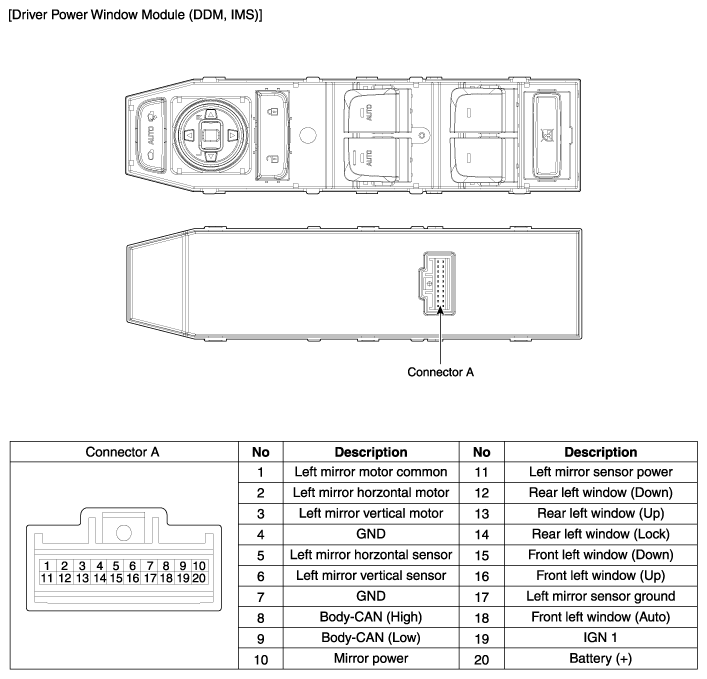

Fig 1: Driver Power Window Switch Connector Terminals And Description Chart (DDM-IMS)
G11988873Courtesy of HYUNDAI MOTOR AMERICA

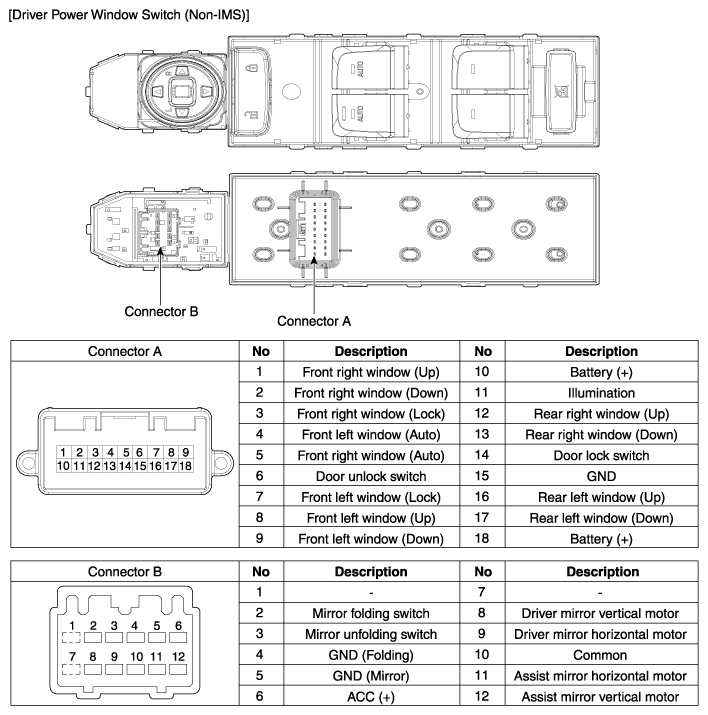

Fig 2: Driver Power Window Switch Connector Terminals And Description Charts (Non-IMS)
G11988874Courtesy of HYUNDAI MOTOR AMERICA
