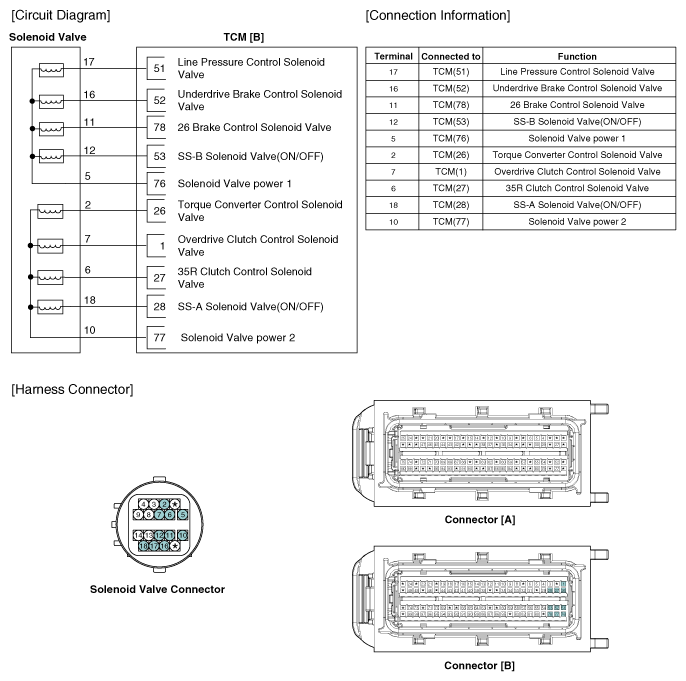

Home >> Hyundai >> 2017 >> Santa Fe XL Base >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System >> Line Pressure Control Solenoid Valve >> Schematic Diagrams >> Circuit Diagram
