Repair Procedures: Inspection
- Remove the cowl top cover.
(Refer to "COWL TOP COVER ")

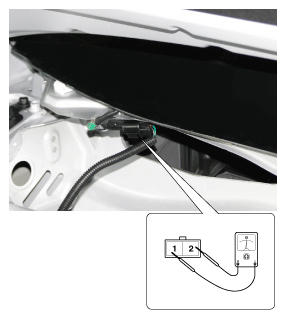

- Disconnect the windshield deicer connector (A) from the wiper motor linkage.
- Check for continuity between the terminals of deicer lines.
- Turn the ignition switch ON and the windshield deicer switch ON, then measure the voltage between the terminals of harness side deicer connector.
OK: approx. Battery voltage (12V)
