Repair Procedures: Inspection

  1. The windshield deicer switch inputs can be checked using the GDS.

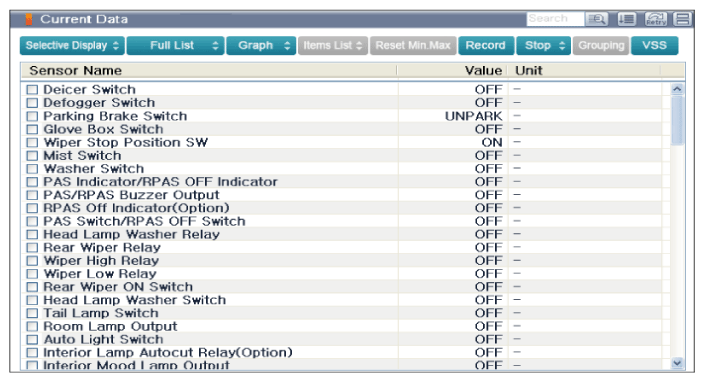

  2. To check the input value of windshield deicer switch, select option "Body Control Module".
  3. Select option "Current Data".
    G12036205Courtesy of HYUNDAI MOTOR AMERICA

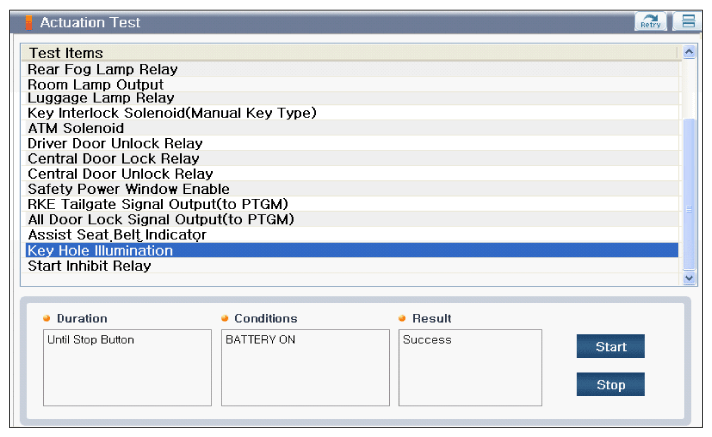

  4. To perform functional test on SJB outputs, select "Actuation Test".
    G12036206Courtesy of HYUNDAI MOTOR AMERICA
