Santa Fe XL Base
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Windows
>>
Power Window Switch
>>
Schematic Diagrams
>>
Circuit Diagram
>>
Driver Power Window Switch
Driver Power Window Switch

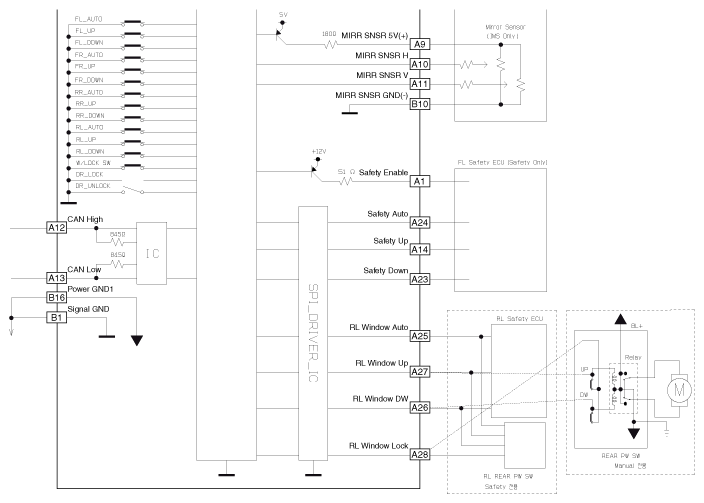

Fig 1: Driver Power Window Switch Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

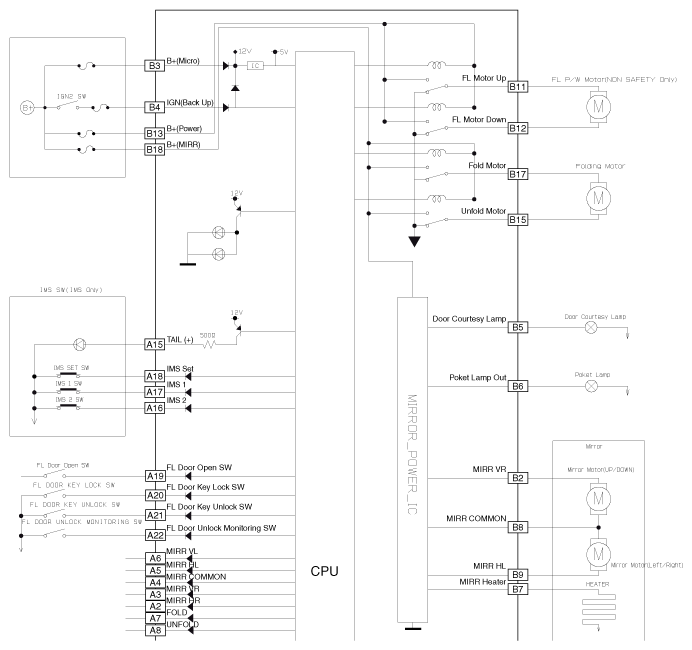

Fig 2: Driver Power Window Switch Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
