Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the liftgate trim and Luggage side trim.
(Refer to TAIL GATE TRIM . )
- Disconnect the power PLG spindle connector (A).

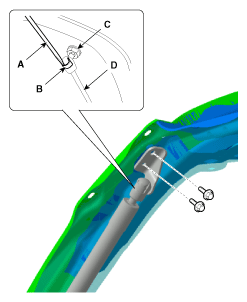

- Using a screwdriver (A), lift up slightly the socket clips (B) of both ends on the lifer (D), and then remove the PLG spindle from the bracket (C).CAUTION: Take care not to be closed the liftgate, when removing the lift.
- If it is necessary, remove the nuts and replace the PLG spindle bracket (A).
Tightening torque:
6.9 ~ 10.8N.m (0.7 ~ 1.1kgf.m, 5.1 ~ 8.0 lb-ft)
