Repair Procedures: Removal

  1. Remove the front wheel and tire (A) from front hub.

    Tightening torque:

    88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)

    CAUTION: Be careful not to damage to the hub bolts when removing the front wheel and tire (A).
    Fig 1: Removing Front Wheel And Tire From Front Hub
    G12056039Courtesy of HYUNDAI MOTOR AMERICA
  2. Disconnect the stabilizer link (B) with the front strut assembly (A) after loosening the nut.

    Tightening torque:

    98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.8 lb-ft)

    Fig 2: Disconnecting Stabilizer Link With Front Strut Assembly
    G12056040Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the sprit pin and castle nut and then disconnect the tie-rod end (A) from the front knuckle.

    Tightening torque:

    23.5 ~ 33.3 N.m (2.4 ~ 3.4 kgf.m, 17.4 ~ 24.6 lb-ft)

    Fig 3: Disconnecting Tie-Rod End From Front Knuckle
    G12056041Courtesy of HYUNDAI MOTOR AMERICA
  4. Loosen the bolt & nut and then remove the lower arm (A).

    Tightening torque:

    98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.8 lb-ft)

    Fig 4: Removing Lower Arm
    G12056042Courtesy of HYUNDAI MOTOR AMERICA
  5. Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.

    Tightening torque:

    32.4 ~ 37.3 N.m (3.3 ~ 3.8 kgf.m, 23.9 ~ 27.5 lb-ft)

    CAUTION:
    • Keep the neutral-range to prevent the damage of the clock spring inner cable when you handle the steering wheel.
    • Do not use the bolt again.
    Fig 5: Disconnecting Universal Joint Assembly From Pinion Of Steering Gear Box
    G12056043Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the under cover.

    G 2.0 T-GDI (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

    G 2.4 GDI (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  7. Loosen the bolt (A, B) and then remove the upper roll rod bracket.

    Tightening torque:

    1. 107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)
    2. 49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)
    NOTE: Bolt (A) is the bolt only special bolts are not reusable.

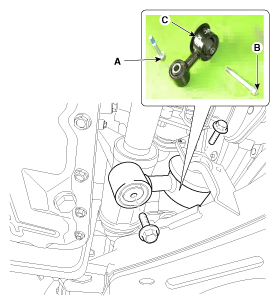

    Fig 6: Removing Upper Roll Rod Bracket
    G12056044Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the roll rod stopper bolt (A).

    Tightening torque:

    107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)

    Fig 7: Removing Roll Rod Stopper Bolt
    G12056045Courtesy of HYUNDAI MOTOR AMERICA
  9. Disconnect the muffler rubber hanger (A).
    Fig 8: Disconnecting Muffler Rubber Hanger
    G12056046Courtesy of HYUNDAI MOTOR AMERICA
  10. Loosen the bolts & nuts and then remove the sub frame.

    Tightening torque

    Bolts:

    1. 44.1 ~ 58.8 N.m (4.5 ~ 6.0 kgf.m, 32.5 ~ 43.4 lb-ft)
    2. 156.9 ~ 176.5 N.m (16.0 ~ 18.0 kgf.m, 115.7 ~ 130.2 lb-ft)

      Nuts:

    3. 44.1 ~ 58.8 N.m (4.5 ~ 6.0 kgf.m, 32.5 ~ 43.4 lb-ft)
    4. 156.9 ~ 176.5 N.m (16.0 ~ 18.0 kgf.m, 115.7 ~ 130.2 lb-ft)

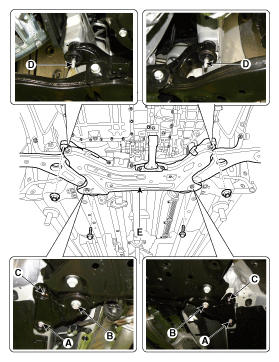

    Fig 9: Removing Sub Frame
    G12056047Courtesy of HYUNDAI MOTOR AMERICA
  11. Loosen the bolt (A-4 ea) and then remove the stabilizer bar (B) from the sub frame.

    Tightening torque:

    49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

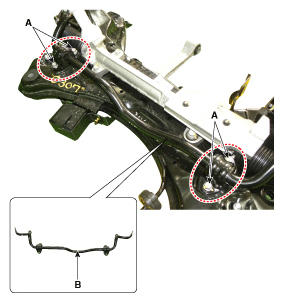

    Fig 10: Removing Stabilizer Bar From Sub Frame
    G12056048Courtesy of HYUNDAI MOTOR AMERICA
  12. Loosen the bolt and then remove the protector (A).

    Tightening torque:

    6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

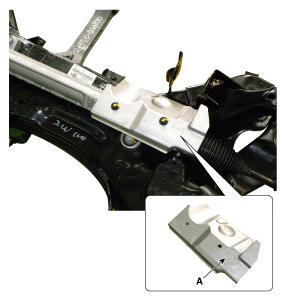

    Fig 11: Removing Protector
    G12056049Courtesy of HYUNDAI MOTOR AMERICA
  13. Remove the steering gearbox (B) from the cross member by loosening the mounting bolt (A-4 ea).

    Tightening torque:

    88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)

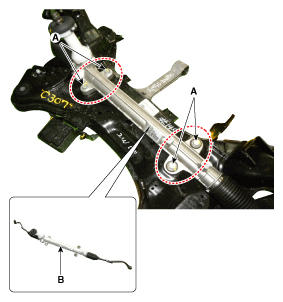

    Fig 12: Removing Steering Gearbox From Cross Member
    G12056050Courtesy of HYUNDAI MOTOR AMERICA
  14. Loosen the nut (A-2 ea) and then remove the sub frame damper (B).

    Tightening torque:

    39.2 ~ 49.0 N.m (4.0 ~ 5.0 kgf.m, 28.9 ~ 36.2 lb-ft)

    Fig 13: Removing Sub Frame Damper
    G12056051Courtesy of HYUNDAI MOTOR AMERICA
  15. Remove the front lower arm.

    (Refer to Front Suspension System - "FRONT LOWER ARM ")

  16. Loosen the bolt (A-2 ea) and then remove the roll rod stopper (B) from the sub frame (C).

    Tightening torque:

    49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

    Fig 14: Removing Roll Rod Stopper From Sub Frame (1 Of 2)
    G12056052Courtesy of HYUNDAI MOTOR AMERICA
    Fig 15: Removing Roll Rod Stopper From Sub Frame (2 Of 2)
    G12056053Courtesy of HYUNDAI MOTOR AMERICA
  17. Installation is the reverse of removal.
  18. Check the front alignment.

    (Refer to Front Suspension System - "FRONT ALIGNMENT ")
