Components and Components Location: Components

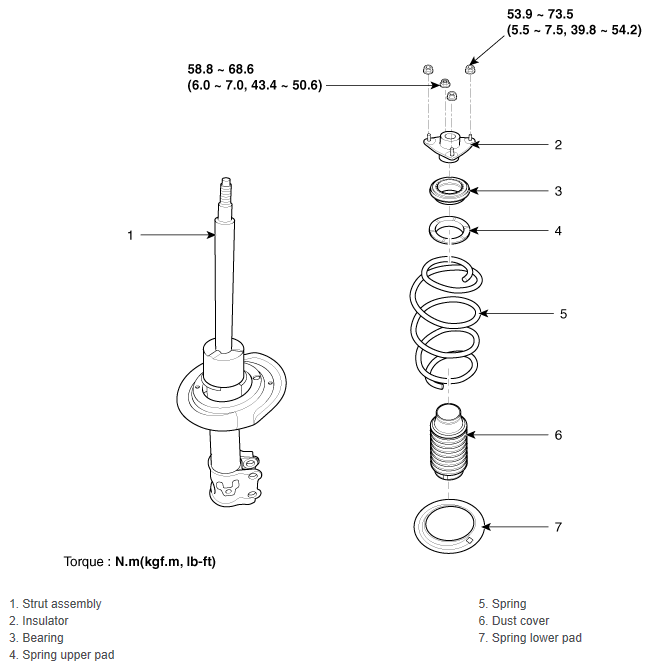

Fig 1: Front Strut Assembly Components With Torque Specification

G12056007

Courtesy of HYUNDAI MOTOR AMERICA
